Unit · BASE UNIT

G AA10VSO 28 DFE /31L-VKC62N00 LRR910946837

Base unit Bosch Rexroth series A10VSO, type code GAA10VSO28DFE/31L-VKC62N00LR, material number R910946837. Nominal size: NG 28. Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft counter-clockwise (L). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: parallel keyed shaft permissible through-drive torque ISO 3019-1 (K). Mounting flange: ISO 3019-1 2-hole (C). Working port: SAE flange ports according to ISO 6162, UNC fastening thread laterally opposite (62). Through drive: without through drive (N00).

Number: R910946837
Type code: G AA10VSO 28 DFE /31L-VKC62N00 LR
Group: A10VSO 28
Edition: 06/2020

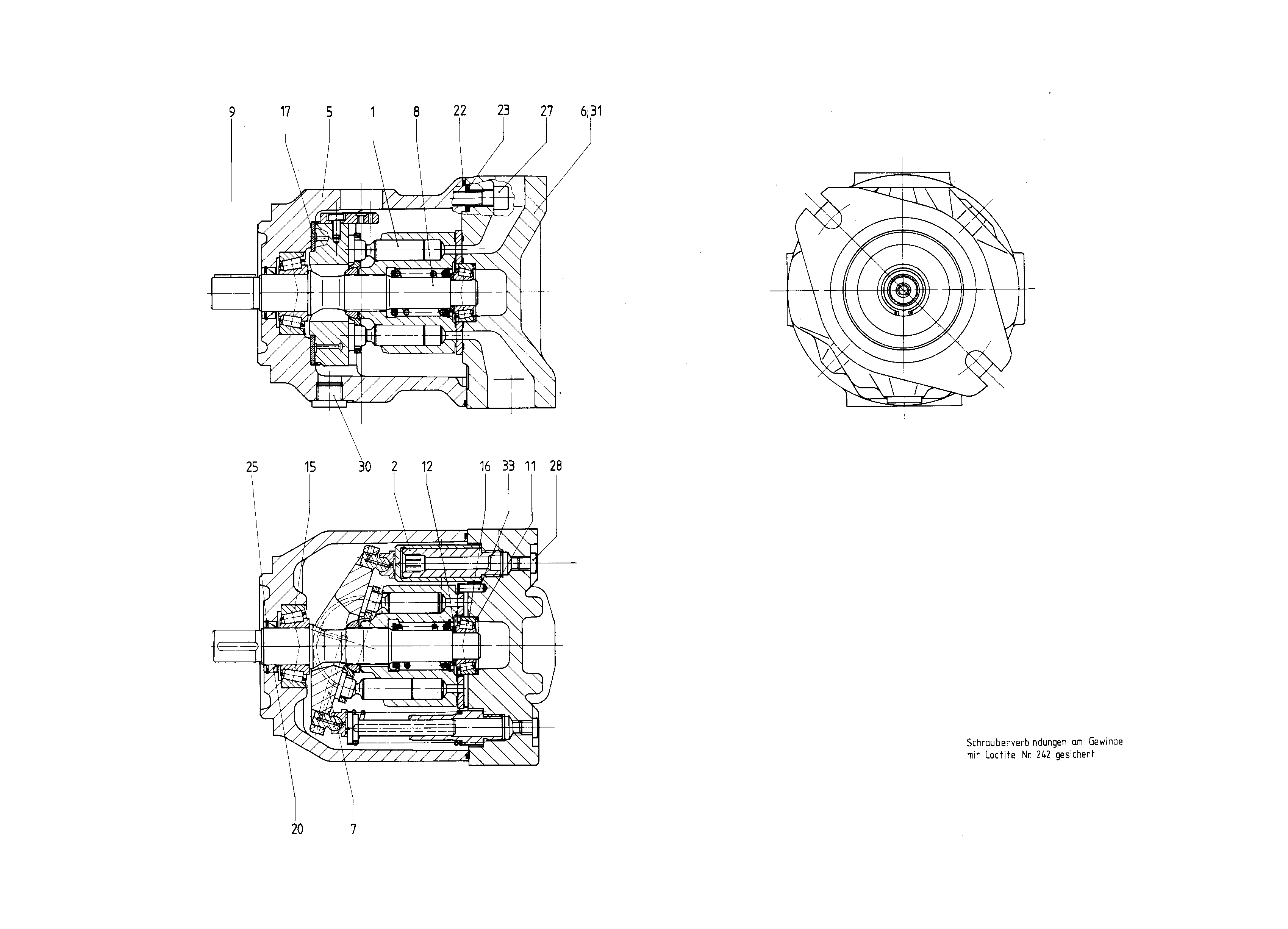

G AA10VSO 28 DFE /31L-VKC62N00 LR — Drawing

Pos.	Number	Name	Qty
	R902439600	ROTARY GROUP Assembly parts list →L	1
2	R910935918	ADJUSTING PIECE Assembly parts list →L	1
	R902550221	PUMP HOUSING	1
6	R902534378	CONNECTION PLATE	1
	R910961003	SWASH PLATE	1
8	R902417360	DRIVE SHAFT	1
	R910751138	PARALLEL KEY	1
	R902400789	ADJUSTMENT SHIM	1
14	R910987890	STOP RING	1
15	R902438109	TAPERED-ROLLER BEARING	1
16	R902438110	TAPERED-ROLLER BEARING	1
	R910902778	BEARING SHELL	2
	R910988019	SHAFT SEALING RINGD	1
	R910976090	O-RINGD	1
	R913052104	R-RINGD	4
	R902403815	RETAINING RING	1
	R910110191	SOCKET HEAD CAP SCREW	4
28	R909156649	SCREW PLUG	2
	R910901969	SCREW PLUGD	1
31	R909831319	DOUBLE BREAK-OFF PLUG	1
33	R902533908	STRAIGHT PIN	1
34	R913011609	SCREW PLUG	1

Parameters from the type code

Item	Meaning	Code
Operating mode	Pump, open circuit	O
Size (NG)	28	28
Series	Series 3, index 1	31
Direction of rotation	Viewed on drive shaft counter-clockwise	L
Sealing material	FKM (fluorocarbon rubber)	V
Drive shaft	Parallel keyed shaft permissible through-drive torque ISO 3019-1	K
Mounting flange	ISO 3019-1 2-hole	C
Working port	SAE flange ports according to ISO 6162, UNC fastening thread laterally opposite	62
Through drive	Without through drive	N00
