Unit · AXIAL-PISTON PUMP
AA4VSO71LR2/10R-PPB13G10R910947034
Axial piston pump Bosch Rexroth series A4VSO, type code AA4VSO71LR2/10R-PPB13G10, material number R910947034. Nominal size: NG 71. Axial piston unit: swashplate design, variable, SAE nominal pressure 5100 psi (350 bar), maximum pressure 5800 psi (400 bar) (AA4VS). Operating mode: pump, open circuit (O). Directions of rotation: viewed on drive shaft clockwise (R). Drive shaft: parallel keyed shaft DIN 6885 (P).
- Number
- R910947034
- Type code
- AA4VSO71LR2/10R-PPB13G10
- Group
- A4VSO 71
- Edition
- 09/2018

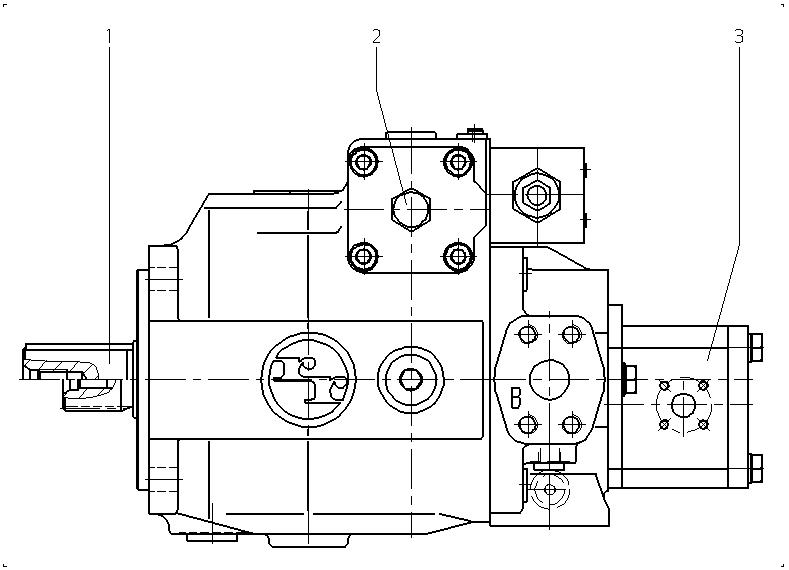

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902424404 | BASE UNIT Assembly parts list →L | 1 | ||
| R910904386 | REGULATOR Assembly parts list →L | 1 | ||
| 0510225020 | HYDRAULIC GEAR PUMPL | 1 | ||
| 61 | R902805708 | SHIPPING PROTECTION | 1 | |
| 62 | R902602012 | SEAL SCREW | 1 | |
| 63 | R902421949 | SHIPPING PROTECTION | 1 | |
| 71 | R902448945 | FLANGE COVER | 1 | |
| 72 | R902448945 | FLANGE COVER | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, SAE nominal pressure 5100 psi (350 bar), maximum pressure 5800 psi (400 bar) | AA4VS |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 71 | 71 |
| Series | Series 1, index 0 (series 1, index 1, only for control HD and EP) | 10 |
| Directions of rotation | Viewed on drive shaft clockwise | R |
| Drive shaft | Parallel keyed shaft DIN 6885 | P |
| Through-drive | 10 | 10 |
