Unit · CONTROL
VAA4VSG250HDD/20XR910947039

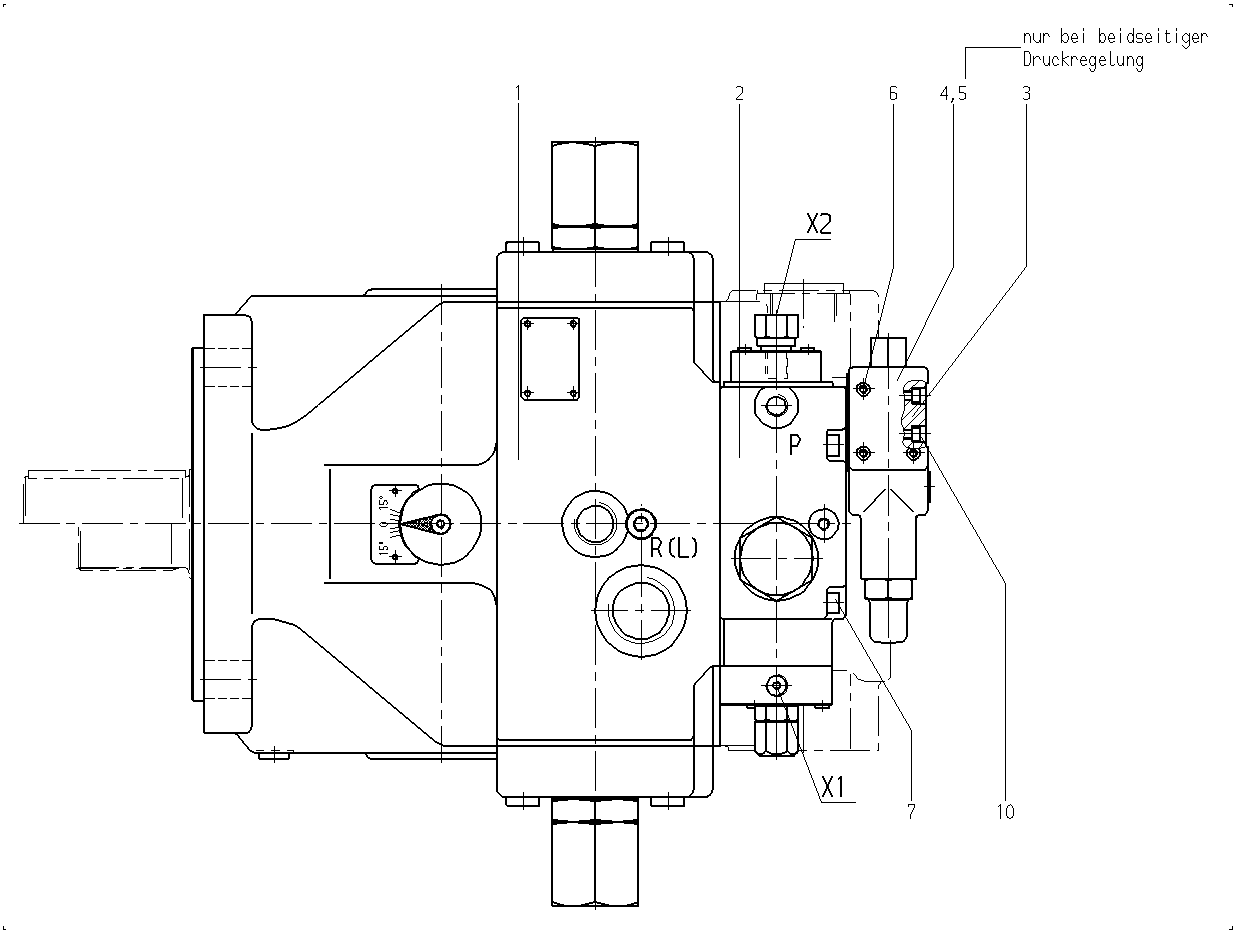

Control Bosch Rexroth series A4VSO, type code VAA4VSG250HDD/20X, material number R910947039. Nominal size: NG 250. Axial piston unit: swashplate design (A4VSG). Control device: hydraulic control, pilot-pressure related (HD).
- Number
- R910947039
- Type code
- VAA4VSG250HDD/20X
- Group
- A4VSG 250
- Edition
- 09/2018
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| — | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| — | CONTROL MODULE Assembly parts list →L | 1 | ||
| R910907174 | INTERMEDIATE PLATE Assembly parts list →L | 1 | ||
| R910916170 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910916270 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910799998 | SOCKET HEAD CAP SCREW | 4 | ||
| R910948896 | SOCKET HEAD CAP SCREW | 4 | ||
| R910785105 | SOCKET HEAD CAP SCREW | 5 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design | A4VSG |
| Size (NG) | 250 | 250 |
| Control device | Hydraulic control, pilot-pressure related | HD |
