Unit · AXIAL-PISTON PUMP

A A10V O 71 DRG /31R-PSC12N00R910947200

Axial piston pump Bosch Rexroth series A10VO, type code AA10VO71DRG/31R-PSC12N00, material number R910947200. Nominal size: NG 71. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Control device: with pressure cut-off Hydraulic Remote controlled (DRG). Direction of rotation: viewed on drive shaft Clockwise (R). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections according to ISO 6162, working ports metric Fastening thread metric; lateral top bottom For through drive (12). Through drive: without through drive (N00).

Number: R910947200
Type code: A A10V O 71 DRG /31R-PSC12N00
Group: A10VO 71
Edition: 06/2020

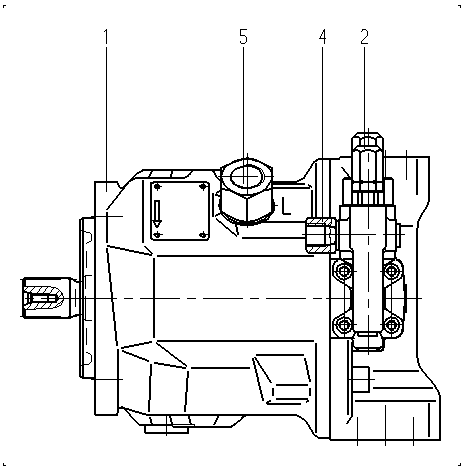

Pos.	Number	Name	Qty
	R910946380	BASE UNIT Assembly parts list →L	1
	R902490090	CONTROL VALVE Assembly parts list →L	1
	R910921653	ADAPTER Assembly parts list →L	1
	R910792772	ADAPTER Assembly parts list →L	1
70	R902421946	SHIPPING PROTECTION	1
71	R902421949	SHIPPING PROTECTION	1
72	R902602011	SEAL SCREW	1
73	R902602008	SEAL SCREW	1
75	R909830326	NAMEPLATE	1

Parameters from the type code

Item	Meaning	Code
Axial piston unit	Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi)	A10V
Operating mode	Pump, open circuit	O
Size (NG)	71	71
Control device	With pressure cut-off Hydraulic Remote controlled	DRG
Series	Series 3, index 1	31
Direction of rotation	Viewed on drive shaft Clockwise	R
Mounting flange	Based on ISO 3019-1 (SAE) 2-hole	C
Working port	SAE flange connections according to ISO 6162, working ports metric Fastening thread metric; lateral top bottom For through drive	12
Through drive	Without through drive	N00

Other versions 1

R910966319 AL A10V O 71 DRG /31R-PSC12N00
