Unit · BASE UNIT
G AA10V O 28 OV /50R-PSC64N00R910947348
Base unit Bosch Rexroth series A10VO, type code GAA10VO28OV/50R-PSC64N00, material number R910947348. Nominal size: NG 28. Axial piston unit: swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) (A10V). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft clockwise (R). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: threaded port, UNC rear not for through drive (64). Through drive: without through drive (N00).
- Number
- R910947348
- Type code
- G AA10V O 28 OV /50R-PSC64N00
- Group
- A10VO 28
- Edition
- 06/2020

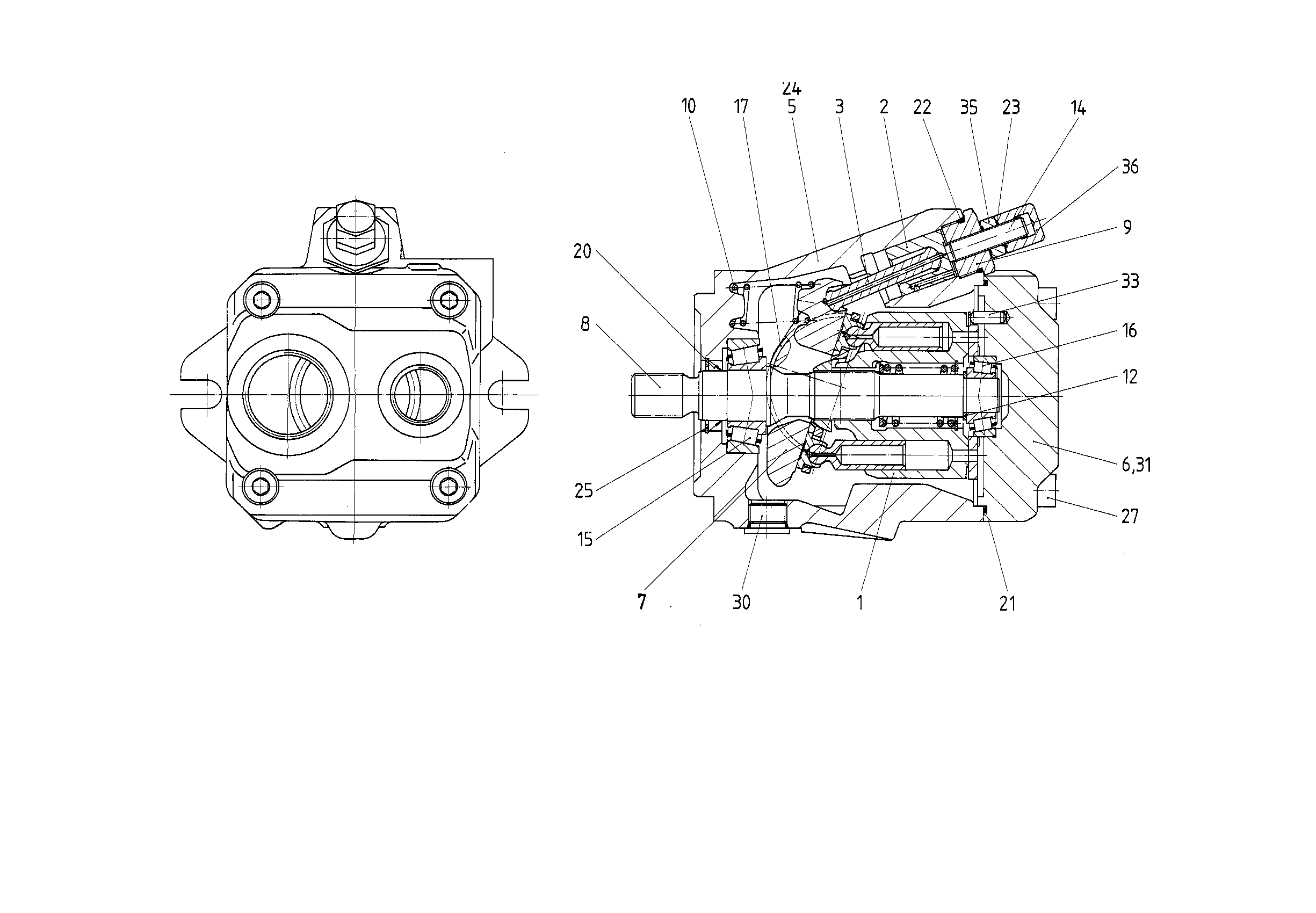

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902439597 | ROTARY GROUP Assembly parts list →L | 1 | |
| 2 | R910928600 | ADJUSTING PISTON | 1 | |
| R902439967 | PISTON ROD | 1 | ||
| R910947323 | PUMP HOUSING | 1 | ||
| R910947317 | CONNECTION PLATE | 1 | ||
| R902437701 | SWASH PLATE | 1 | ||
| 8 | R902417366 | DRIVE SHAFT | 1 | |
| 9 | R902516339 | SCREW PLUG | 1 | |
| R910947314 | COMPRESSION SPRING | 1 | ||
| 12 | R902400789 | ADJUSTMENT SHIM | 1 | |
| R902532354 | STOP SCREW | 1 | ||
| 15 | R902438109 | TAPERED-ROLLER BEARING | 1 | |
| 16 | R902438110 | TAPERED-ROLLER BEARING | 1 | |
| R902410506 | BEARING SHELL | 2 | ||
| 20 | R910794325 | SHAFT SEALING RINGD | 1 | |
| 21 | R913052046 | O-RINGD | 1 | |
| R910514691 | O-RINGD | 2 | ||
| 24 | R910942134 | R-RINGD | 1 | |
| R902403815 | RETAINING RING | 1 | ||
| R910119091 | SOCKET HEAD CAP SCREW | 4 | ||
| R909153338 | SCREW PLUGD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| 33 | R902533908 | STRAIGHT PIN | 1 | |
| R910998240 | NUT | 1 | ||
| R910904041 | CAP NUT | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 28 | 28 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Working port | Threaded port, UNC rear not for through drive | 64 |
| Through drive | Without through drive | N00 |
