Unit · CONTROL
V A7V O 250 LRGN1/63L-P 01 -SO 3R910947582
Control Bosch Rexroth series A7VO, type code VA7VO250LRGN1/63L-P01-SO3, material number R910947582. Nominal size: NG 250.
- Number
- R910947582
- Type code
- V A7V O 250 LRGN1/63L-P 01 -SO 3
- Group
- A7VO 250
- Edition
- 06/2020

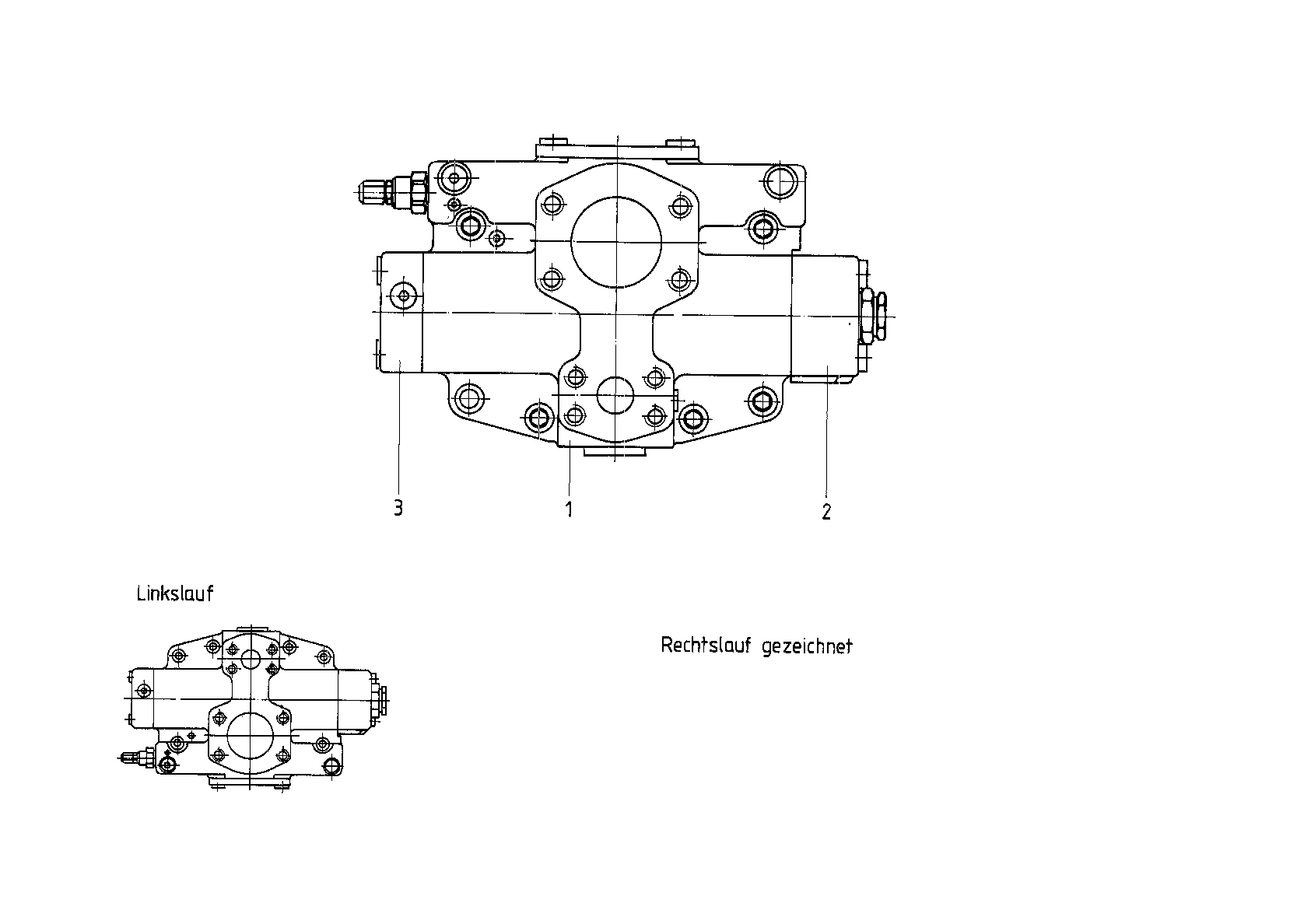

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R910947583 | ADJUSTING PIECE Assembly parts list →L | 1 | |
| 2 | R910931745 | CONTROL PART Assembly parts list →L | 1 | |
| 3 | R910930575 | COVER Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Bent axis design, variable, nominal pressure 350 bar, peak pressure 400 bar | A7V | |
| 250 | 250 | |
| hydraulic stroke limiter Δp = 10 bar initial position Vg min | LRGN1 | |
| Series 6, Index 3 | 63 | |
| counter clockwise | L | |
| Keyed parallel shaft to DIN 6885 | P | |
| Service line connections 250 355 500, SAE-flanged port B or A, at rear (metric fixing bolts) SAE flanged port S, at rear(metric fixing bolts) | 01 |
