Unit · AXIAL-PISTON PUMP
A A10VSO 71 DFR1/31R-PPA12N00 -SO 20R910947992
Axial piston pump Bosch Rexroth series A10VSO, type code AA10VSO71DFR1/31R-PPA12N00-SO20, material number R910947992. Nominal size: NG 71. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10VS). Operating mode: pump, open circuit (O). Control device: with flow controller X-T plugged, with flushing function (DFR1). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: NBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluid (P). Drive shaft: parallel keyed shaft DIN 6885 permissible through-drive torque (P). Mounting flange: ISO 3019-2 2-hole (A). Working port: SAE flange ports according to ISO 6162, metric fastening thread laterally opposite (12). Through drive: without through drive (N00). Special version no. 20.
- Number
- R910947992
- Type code
- A A10VSO 71 DFR1/31R-PPA12N00 -SO 20
- Group
- A10VSO 71
- Edition
- 06/2020

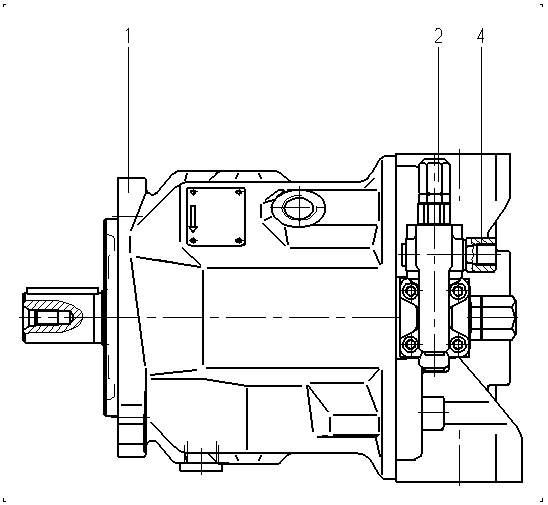

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910942371 | BASE UNIT Assembly parts list →L | 1 | ||
| R902533275 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910921653 | ADAPTER Assembly parts list →L | 2 | ||
| 70 | R902421946 | SHIPPING PROTECTION | 1 | |
| 71 | R902421949 | SHIPPING PROTECTION | 1 | |
| 72 | R902602011 | SEAL SCREW | 1 | |
| 73 | R902602008 | SEAL SCREW | 2 | |
| 75 | R909830326 | NAMEPLATE | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar | A10VS |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 71 | 71 |
| Control device | with flow controller X-T plugged, with flushing function | DFR1 |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | NBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluid | P |
| Drive shaft | Parallel keyed shaft DIN 6885 permissible through-drive torque | P |
| Mounting flange | ISO 3019-2 2-hole | A |
| Working port | SAE flange ports according to ISO 6162, metric fastening thread laterally opposite | 12 |
| Through drive | Without through drive | N00 |
Other versions 21
- R902544798 A A10VSO 71 DFR1/31R-PPA12N00
- R902544799 A A10VSO 71 DFR1/31R-PPA12N00
- R910944440 A A10VSO 71 DFR1/31R-PPA12N00
- R902416912 A A10VSO 71 DFR1/31R-PPA12N00 -S1348
- R902427855 A A10VSO 71 DFR1/31R-PPA12N00 -S1439
- R902427947 A A10VSO 71 DFR1/31R-PPA12N00 -S1648
- R910948148 A A10VSO 71 DFR1/31R-PPA12N00 -SO 13
- R910979537 A A10VSO 71 DFR1/31R-PPA12N00 -SO 32
- R910985703 A A10VSO 71 DFR1/31R-PPA12N00 -SO108
- R910963970 A A10VSO 71 DFR1/31R-PPA12N00 -SO119
- R910948024 A A10VSO 71 DFR1/31R-PPA12N00 -SO126
- R910978476 A A10VSO 71 DFR1/31R-PPA12N00 -SO127
- R910985257 A A10VSO 71 DFR1/31R-PPA12N00 -SO155
- R910966625 A A10VSO 71 DFR1/31R-PPA12N00 -SO169
- R910946341 A A10VSO 71 DFR1/31R-PPA12N00 -SO405
- R902418214 A A10VSO 71 DFR1/31R-PPA12N00 -SO413
- R902426169 AA10VSO71DFR1/31R-PPA12N00-S1591
- R902419338 AA10VSO71DFR1/31R-PPA12N00-SO239
- R902404114 AL A10VSO 71 DFR1/31R-PPA12N00
- R902549948 AL A10VSO 71 DFR1/31R-PPA12N00
- R902477569 AL A10VSO 71 DFR1/31R-PPA12N00 -S1648
