Unit · CONTROL
V A7V O 250 LRDH1/63R-P 01R910948583
Control Bosch Rexroth series A7VO, type code VA7VO250LRDH1/63R-P01, material number R910948583. Nominal size: NG 250. Axial piston unit: bent-axis design, variable, nominal pressure 350 bar, maximum pressure 400 bar (A7V). Operating mode: pump, open circuit (O). Control device: with pressure cut-off and stroke limiter negative control Δp = 25 bar (LRDH1). Direction of rotation: viewed on drive shaft (R). Drive shaft: parallel keyed shaft according to DIN 6885 (P). Port plate for working lines: SAE flange ports A and S at rear (metric fastening thread) (01).
- Number
- R910948583
- Type code
- V A7V O 250 LRDH1/63R-P 01
- Group
- A7VO 250
- Edition
- 06/2020

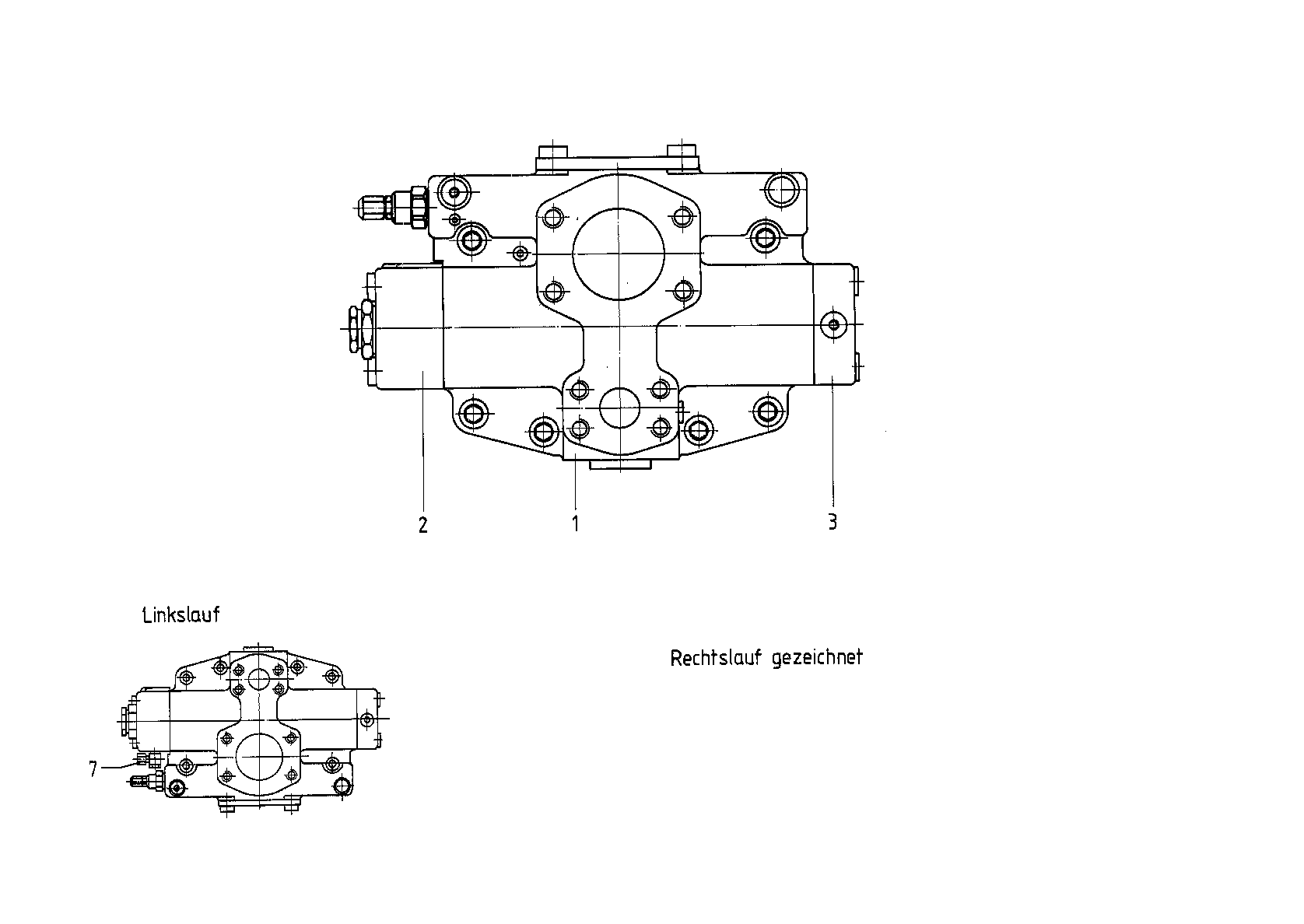

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R910943351 | ADJUSTING PIECE Assembly parts list →L | 1 | |
| 2 | R910933219 | CONTROL PART Assembly parts list →L | 1 | |
| 3 | R910932872 | COVER Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable, nominal pressure 350 bar, maximum pressure 400 bar | A7V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 250 | 250 |
| Control device | with pressure cut-off and stroke limiter negative control Δp = 25 bar | LRDH1 |
| Series | Series 6, index 3 | 63 |
| Direction of rotation | Viewed on drive shaft | R |
| Drive shaft | Parallel keyed shaft according to DIN 6885 | P |
| Port plate for working lines | SAE flange ports A and S at rear (metric fastening thread) | 01 |
