Unit · ROTARY GROUP
TW A10VM 71R910948781
Rotary group Bosch Rexroth series A10VM, type code TWA10VM71, material number R910948781. Nominal size: NG 71. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10V). Operating mode: motor, open and closed circuit (M).
- Number
- R910948781
- Type code
- TW A10VM 71
- Group
- A10VM 71
- Edition
- 06/2020

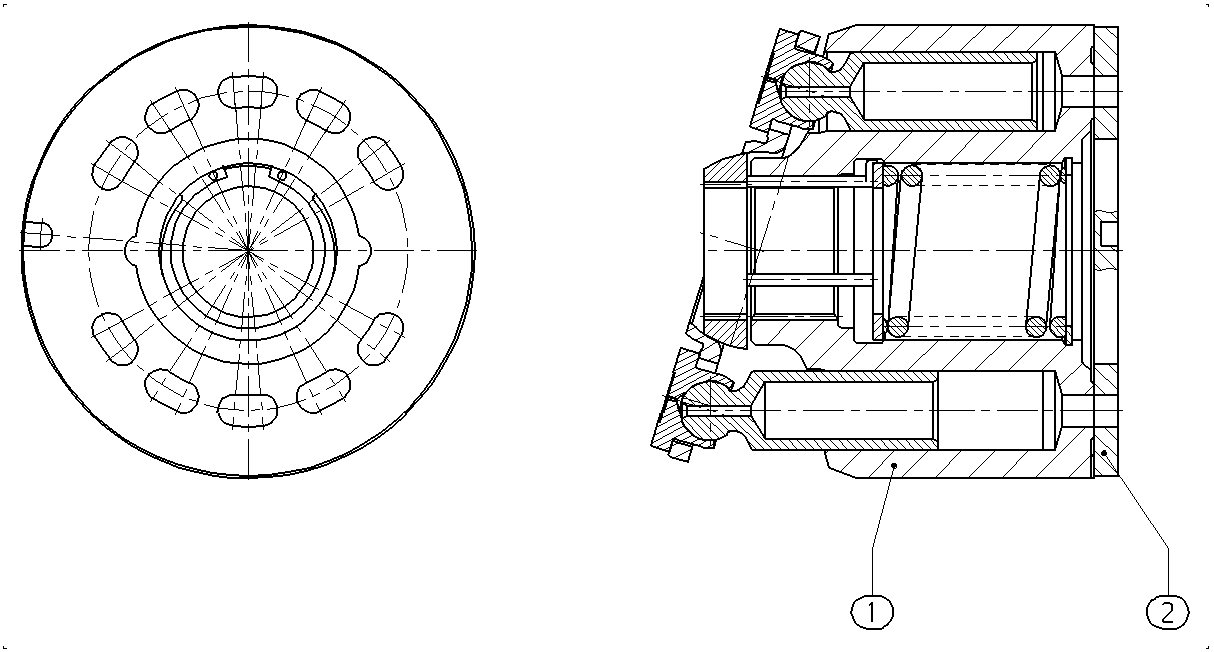

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910994422 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902445481 | DISTRIBUTOR PLATE | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar | A10V |
| Operating mode | Motor, open and closed circuit | M |
| Size (NG) | 71 | 71 |
