Unit · CONTROL
V A7V O 500 LRDH3/63R-P 01R910949059
Control Bosch Rexroth series A7VO, type code VA7VO500LRDH3/63R-P01, material number R910949059. Nominal size: NG 500.
- Number
- R910949059
- Type code
- V A7V O 500 LRDH3/63R-P 01
- Group
- A7VO 500
- Edition
- 07/2020

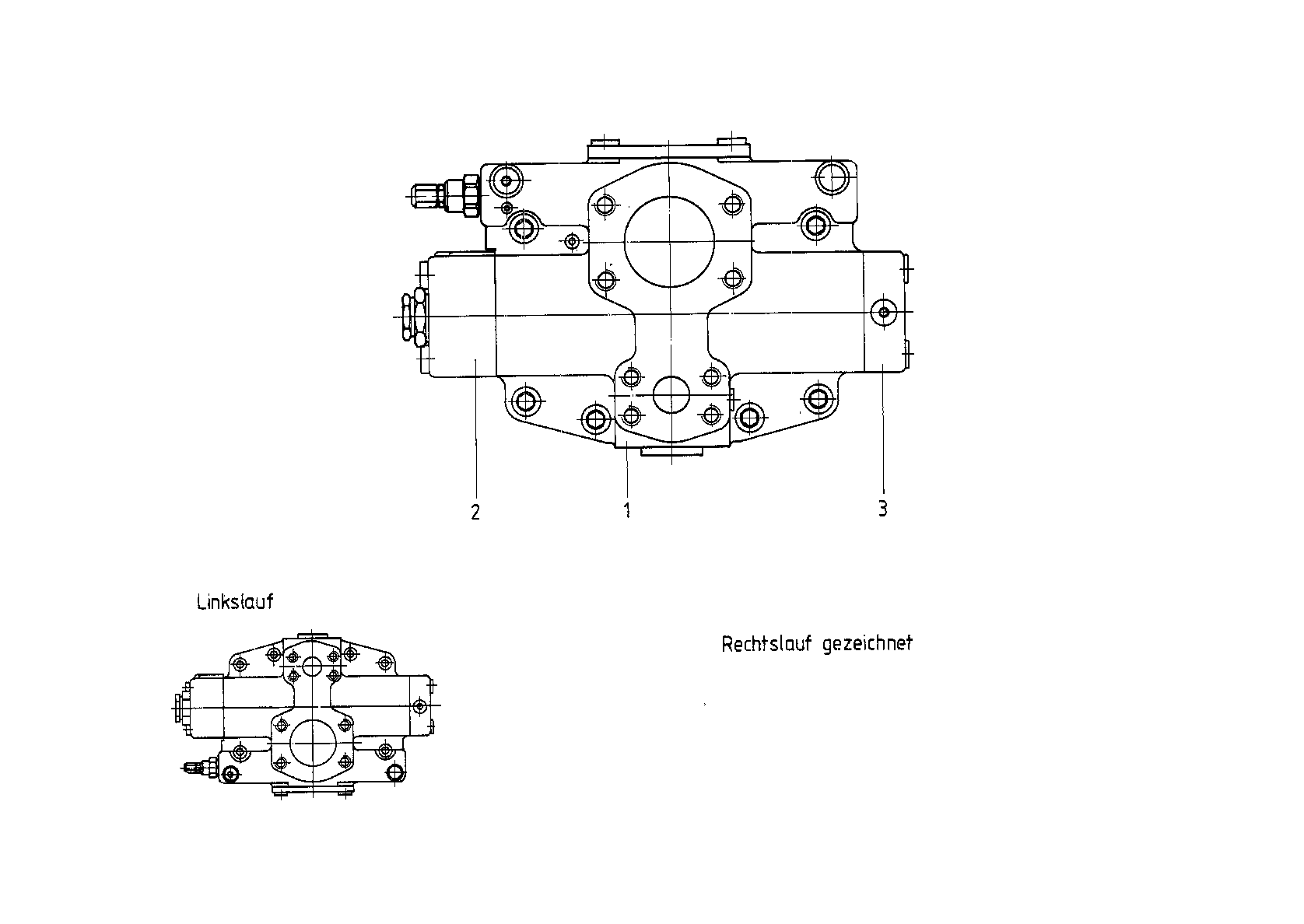

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910949061 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R910949064 | CONTROL PART Assembly parts list →L | 1 | ||
| R910942087 | COVER Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Bent axis design, variable, nominal pressure 350 bar, peak pressure 400 bar | A7V | |
| 500 | 500 | |
| with hydraulic stroke limiter initial position Vg max Δp = 35 bar | LRDH3 | |
| Series 6, Index 3 | 63 | |
| Keyed parallel shaft to DIN 6885 | P | |
| Service line connections 250 355 500, SAE-flanged port B or A, at rear (metric fixing bolts) SAE flanged port S, at rear(metric fixing bolts) | 01 |
