Unit · AXIAL-PISTON MOTOR
AA6VLM250HD2/63W1-PZB020B-SO27R910949516
Axial piston motor Bosch Rexroth series A6VM, type code AA6VLM250HD2/63W1-PZB020B-SO27, material number R910949516. Nominal size: NG 250. Axial piston unit: bent-axis design, variable (A6V). Drive shaft bearing: long-life bearing (L). Operating mode: motor (M). Control device: proportional control, hydraulic ΔpSt = 25 bar (HD2). Direction of rotation: viewed on drive shaft variable (W). Setting ranges for displacement: vg min = 0 to 0.4 Vg max Vg max = Vg max to 0.8 Vg max (1). Drive shaft: splined shaft DIN 5480 (Z). Mounting flange: ISO 3019-2 4-hole (B). Working port: SAE working ports Without valve 0 A and B at side, opposite 02 (020). Beginning of control: at Vg max (standard for HD, HZ, EP, EZ, DA) (B). Standard/special version: special version (-S). Special version no. 27.
- Number
- R910949516
- Type code
- AA6VLM250HD2/63W1-PZB020B-SO27
- Group
- A6VLM 250
- Edition
- 06/2020

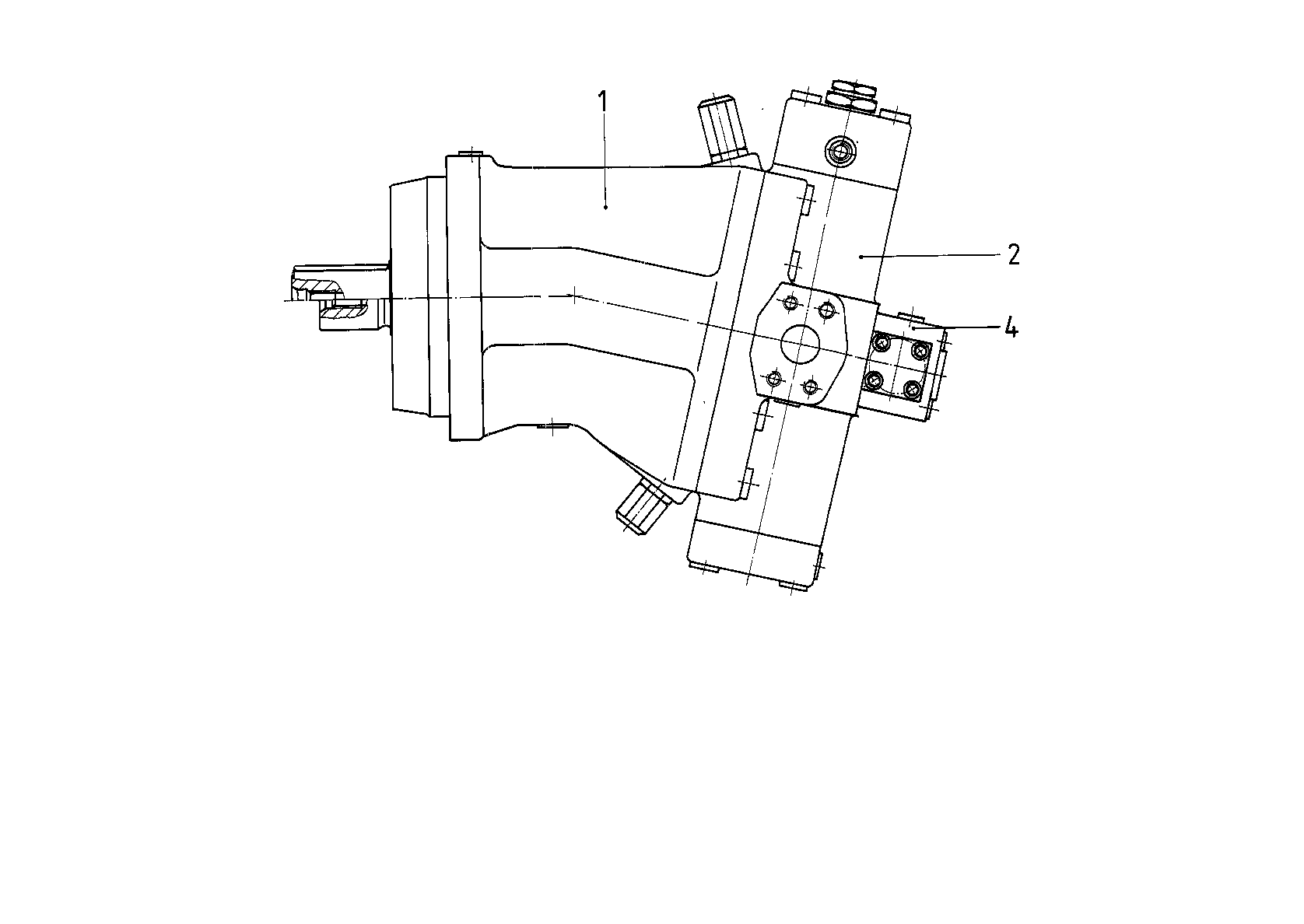

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R910934549 | AXIAL-PISTON MOTOR Assembly parts list →L | 1 | |
| 2 | R910949518 | CONTROL Assembly parts list →L | 1 | |
| 4 | R910921043 | BOOST VALVE Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | A6V |
| Drive shaft bearing | Long-life bearing | L |
| Operating mode | Motor | M |
| Size (NG) | 250 | 250 |
| Control device | Proportional control, hydraulic ΔpSt = 25 bar | HD2 |
| Series | Series 6, index 3 | 63 |
| Direction of rotation | Viewed on drive shaft variable | W |
| Setting ranges for displacement | Vg min = 0 to 0.4 Vg max Vg max = Vg max to 0.8 Vg max | 1 |
| Drive shaft | Splined shaft DIN 5480 | Z |
| Mounting flange | ISO 3019-2 4-hole | B |
| Working port | SAE working ports Without valve 0 A and B at side, opposite 02 | 020 |
| Beginning of control | At Vg max (standard for HD, HZ, EP, EZ, DA) | B |
| Standard/special version | Special version | -S |
