Unit · AXIAL-PISTON PUMP
AA10VSO45DFR1/31R-PPA12N00-SO434R910949751
Axial piston pump Bosch Rexroth series A10VSO, type code AA10VSO45DFR1/31R-PPA12N00-SO434, material number R910949751. Nominal size: NG 45. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10VS). Operating mode: pump, open circuit (O). Control device: with flow controller X-T plugged, with flushing function (DFR1). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: NBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluid (P). Drive shaft: parallel keyed shaft DIN 6885 permissible through-drive torque (P). Mounting flange: ISO 3019-2 2-hole (A). Working port: SAE flange ports according to ISO 6162, metric fastening thread laterally opposite (12). Through drive: without through drive (N00). Special version no. 434.
- Number
- R910949751
- Type code
- AA10VSO45DFR1/31R-PPA12N00-SO434
- Group
- A10VSO 45
- Edition
- 06/2020

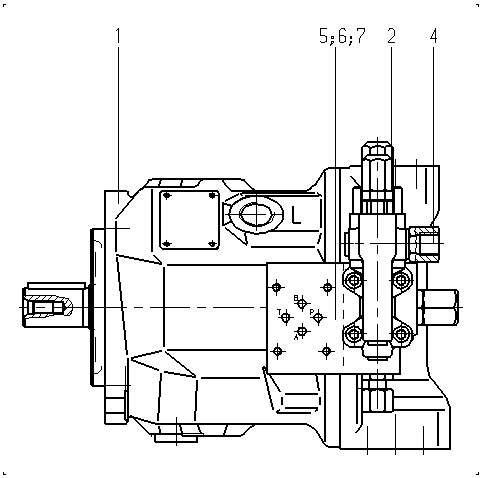

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910900504 | BASE UNIT Assembly parts list →L | 1 | ||
| R902450439 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910921653 | ADAPTER Assembly parts list →L | 1 | ||
| R902472640 | CONTROL BLOCK Assembly parts list →L | 1 | ||
| R902650500 | SOCKET HEAD CAP SCREW | 4 | ||
| R910515078 | O-RING | 3 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar | A10VS |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 45 | 45 |
| Control device | with flow controller X-T plugged, with flushing function | DFR1 |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | NBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluid | P |
| Drive shaft | Parallel keyed shaft DIN 6885 permissible through-drive torque | P |
| Mounting flange | ISO 3019-2 2-hole | A |
| Working port | SAE flange ports according to ISO 6162, metric fastening thread laterally opposite | 12 |
| Through drive | Without through drive | N00 |
Other versions 24
- R902544821 A A10VSO 45 DFR1/31R-PPA12N00
- R902546775 A A10VSO 45 DFR1/31R-PPA12N00
- R910908725 A A10VSO 45 DFR1/31R-PPA12N00
- R902416913 A A10VSO 45 DFR1/31R-PPA12N00 -S1348
- R902427886 A A10VSO 45 DFR1/31R-PPA12N00 -S1439
- R902428405 A A10VSO 45 DFR1/31R-PPA12N00 -S1648
- R910915256 A A10VSO 45 DFR1/31R-PPA12N00 -SO 13
- R910913706 A A10VSO 45 DFR1/31R-PPA12N00 -SO 20
- R910905403 A A10VSO 45 DFR1/31R-PPA12N00 -SO 32
- R910985331 A A10VSO 45 DFR1/31R-PPA12N00 -SO108
- R910911111 A A10VSO 45 DFR1/31R-PPA12N00 -SO109
- R910908867 A A10VSO 45 DFR1/31R-PPA12N00 -SO119
- R910938919 A A10VSO 45 DFR1/31R-PPA12N00 -SO127
- R910921747 A A10VSO 45 DFR1/31R-PPA12N00 -SO155
- R910941489 A A10VSO 45 DFR1/31R-PPA12N00 -SO169
- R910944171 A A10VSO 45 DFR1/31R-PPA12N00 -SO239
- R910946319 A A10VSO 45 DFR1/31R-PPA12N00 -SO405
- R902423312 AA10VSO45DFR1/31R-PPA12N00-S1487
- R910933003 AA10VSO45DFR1/31R-PPA12N00-SO303
- R910990861 AA10VSO45DFR1/31R-PPA12N00-SO819
- R902404192 AL A10VSO 45 DFR1/31R-PPA12N00
- R902477574 AL A10VSO 45 DFR1/31R-PPA12N00 -S1439
- R902477273 AL A10VSO 45 DFR1/31R-PPA12N00 -S1648
- R902477572 AL A10VSO 45 DFR1/31R-PPA12N00 -SO 32
