Unit · AXIAL-PISTON PUMP
AA4VSO71HD1/11L-VZB13K01-SO568R910960158
Axial piston pump Bosch Rexroth series A4VSO, type code AA4VSO71HD1/11L-VZB13K01-SO568, material number R910960158. Nominal size: NG 71. Axial piston unit: swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar (A4VS). Operating mode: pump, open circuit (O). Directions of rotation: viewed on drive shaft Counter-clockwise (L). Drive shafts: splined shaft DIN 5480 (Z). Mounting flange: based on ISO 3019-2 (metric) 4-hole (B). Special version no. 568.
- Number
- R910960158
- Type code
- AA4VSO71HD1/11L-VZB13K01-SO568
- Group
- A4VSO 71
- Edition
- 06/2020

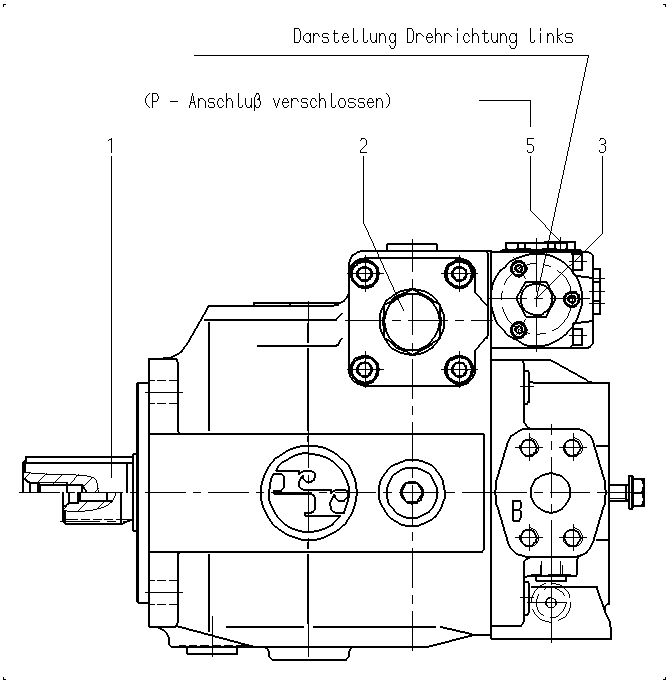

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902424660 | BASE UNIT Assembly parts list →L | 1 | ||
| R910960518 | CONTROL Assembly parts list →L | 1 | ||
| R910920956 | SPRING PACK Assembly parts list →L | 1 | ||
| R909153930 | SCREW PLUG | 1 | ||
| 61 | R902805708 | SHIPPING PROTECTION | 1 | |
| 62 | R902602012 | SEAL SCREW | 1 | |
| 63 | R902421949 | SHIPPING PROTECTION | 1 | |
| 71 | R902418324 | FLANGE COVER Assembly parts list →L | 1 | |
| 81 | R902602008 | SEAL SCREW | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar | A4VS |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 71 | 71 |
| Series | Series 1, index 1 only for HD control | 11 |
| Directions of rotation | Viewed on drive shaft Counter-clockwise | L |
| Drive shafts | Splined shaft DIN 5480 | Z |
| Mounting flange | Based on ISO 3019-2 (metric) 4-hole | B |
