Unit · ROTARY GROUP
TWA4VSG500M/10L-VPHK00-SO534R910960872
Rotary group Bosch Rexroth series A4VSG, type code TWA4VSG500M/10L-VPHK00-SO534, material number R910960872. Nominal size: NG 500. Axial piston unit: swashplate design, variable, nominal pressure 315 bar, maximum pressure (A4VS). Operating mode: pump / motor, closed circuit (G). Sealing material: FKM (fluorocarbon rubber) according to ISO 1629 (V). Drive shaft: parallel keyed shaft DIN 6885 (P). Mounting flange: in accordance with ISO 3019-2 metric 8-hole (H). Valves: electrically releasable shut-off block for combination with load-holding function LS 1363, type code L, and block for manual overload protection MOPS (3).
- Number
- R910960872
- Type code
- TWA4VSG500M/10L-VPHK00-SO534
- Group
- A4VSG 500
- Edition
- 06/2020

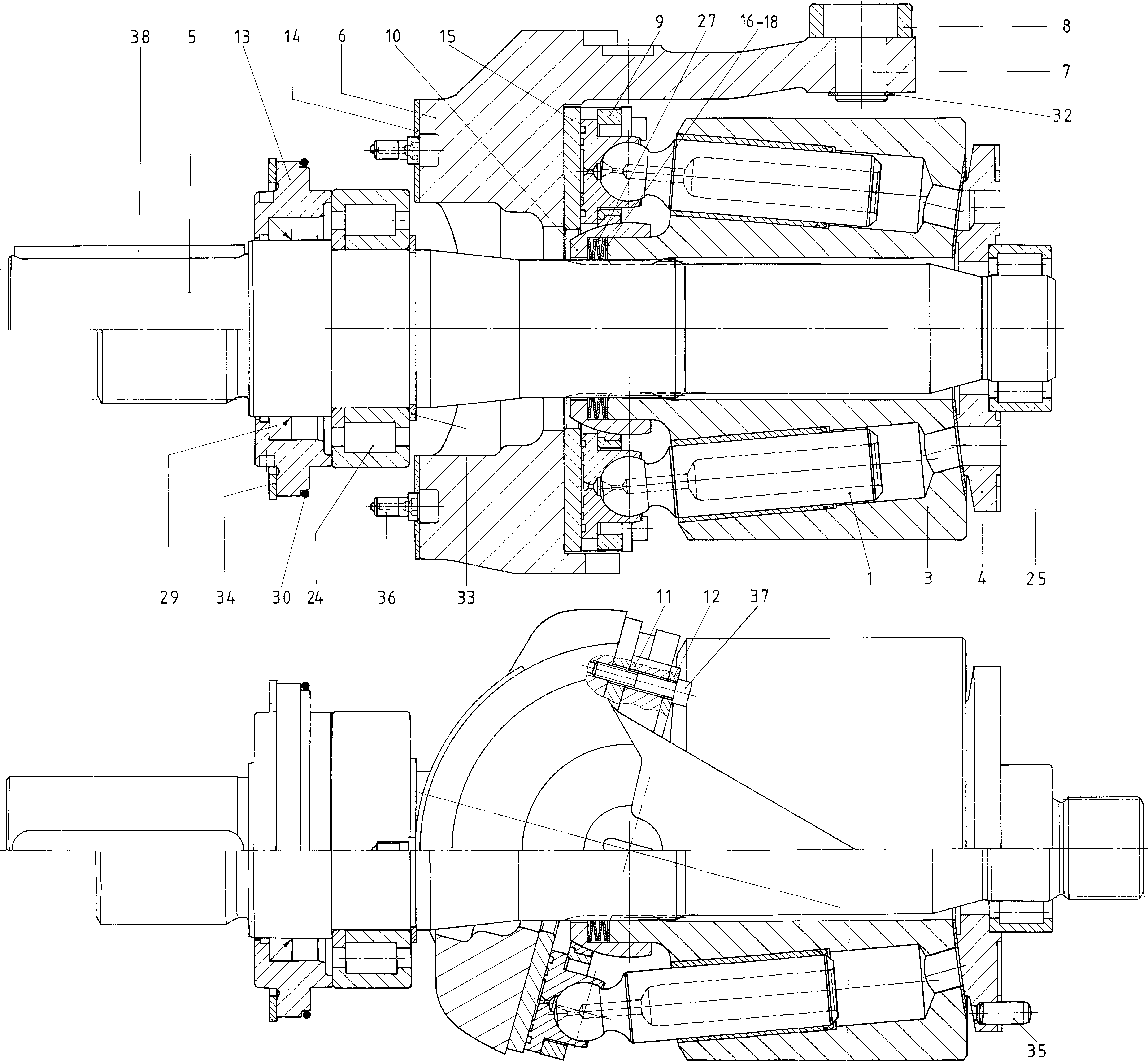

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910963090 | PISTON PAD | 9 | ||
| R910926107 | CYLINDER | 1 | ||
| R910987897 | DISTRIBUTOR PLATE | 1 | ||
| R902408420 | DRIVE SHAFT | 1 | ||
| R910910908 | SWASH PLATE | 1 | ||
| R910910927 | DRIVER PIVOT | 1 | ||
| R910910926 | SLIDER | 1 | ||
| R910971077 | RETAINING PLATE | 1 | ||
| R910910916 | RETAINING BALL | 1 | ||
| R910965066 | SPACER SEGMENT | 4 | ||
| R902570176 | SEGMENT | 4 | ||
| R910910924 | SEALING FLANGE | 1 | ||
| R910918953 | BEARING SHELL | 2 | ||
| R902439281 | SLIDING DISC | 1 | ||
| R910960170 | SHIM RING | 1 | ||
| 17 | R910960754 | SHIM RING | 1 | |
| R910978421 | CYL. ROLLER BEARING | 1 | ||
| R910978422 | CYL. ROLLER BEARING | 1 | ||
| R910911350 | CUP-SPRING STACK | 1 | ||
| R910930623 | SHAFT SEALING RING | 1 | ||
| R910113689 | O-RINGD | 1 | ||
| R910187968 | RETAINING RING | 1 | ||
| R910188034 | RETAINING RING | 1 | ||
| R910901219 | RETAINING RING | 1 | ||
| R910910938 | STRAIGHT PIN | 1 | ||
| R910932883 | SETTING SCREW | 2 | ||
| R902650870 | SOCKET HEAD CAP SCREW | 8 | ||
| R910910939 | PARALLEL KEY | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 315 bar, maximum pressure | A4VS |
| Operating mode | Pump / motor, closed circuit | G |
| Size (NG) | 500 | 500 |
| Series | Series 1, index 0 | 10 |
| Sealing material | FKM (fluorocarbon rubber) according to ISO 1629 | V |
| Drive shaft | Parallel keyed shaft DIN 6885 | P |
| Mounting flange | In accordance with ISO 3019-2 metric 8-hole | H |
| Valves | Electrically releasable shut-off block for combination with load-holding function LS 1363, type code L, and block for manual overload protection MOPS | 3 |
