Unit · BASE UNIT
GA4VSG500M/10L-VPH10K25-SO534R910960882
Base unit Bosch Rexroth series A4VSG, type code GA4VSG500M/10L-VPH10K25-SO534, material number R910960882. Nominal size: NG 500. Axial piston unit: swashplate design, variable, nominal pressure 350 bar, maximum pressure (A4VS). Operating mode: pump / motor, closed circuit (G). Sealing material: FKM (fluorocarbon rubber) according to ISO 1629 (V). Drive shaft: parallel keyed shaft DIN 6885 (P). Mounting flange: based on ISO 3019-2 metric 8-hole (H). Working port: SAE flange ports A and B, located on same side, metric fastening thread (10).
- Number
- R910960882
- Type code
- GA4VSG500M/10L-VPH10K25-SO534
- Group
- A4VSG 500
- Edition
- 06/2020

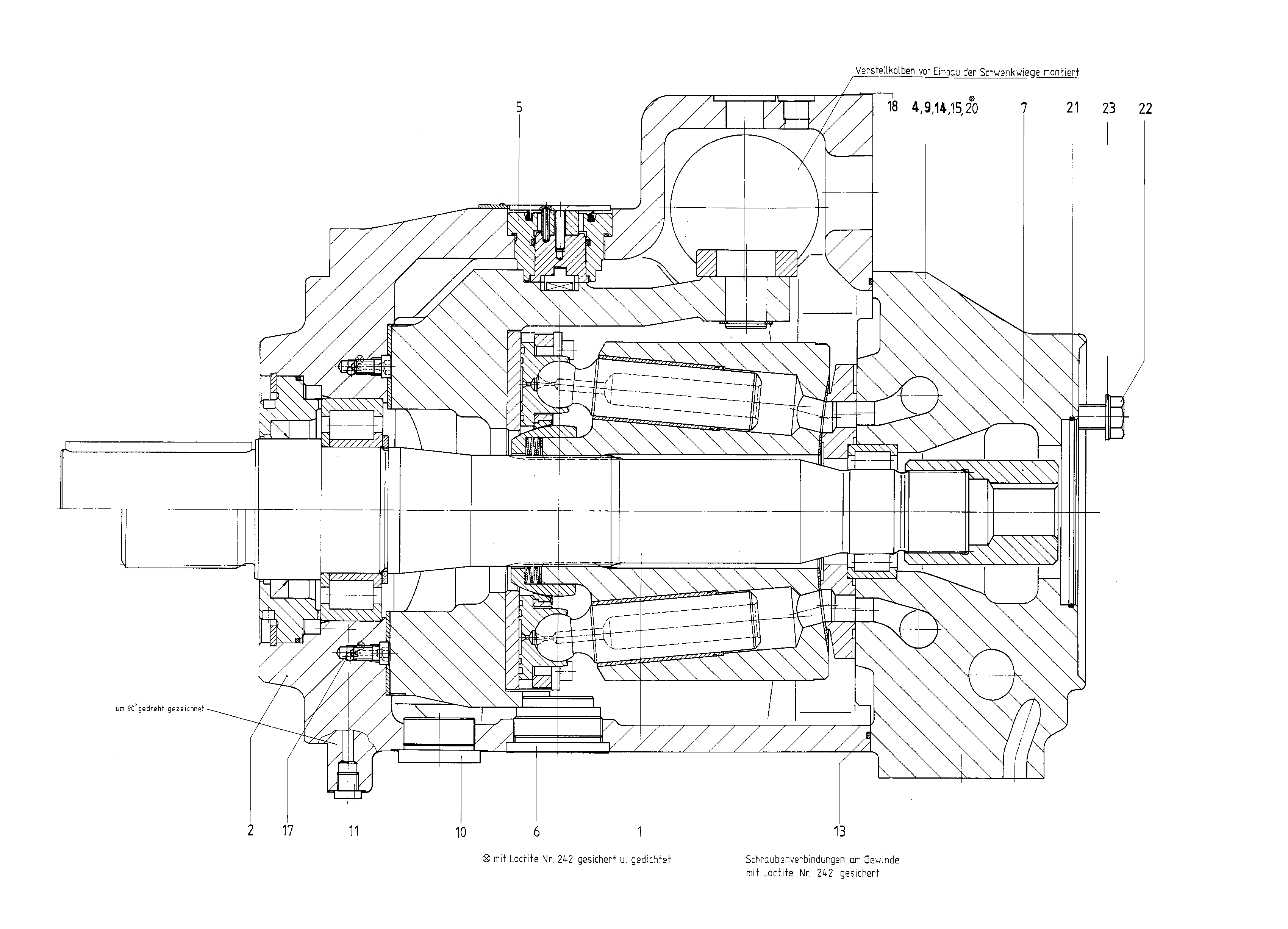

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910960872 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R910970353 | PUMP HOUSING | 1 | ||
| R910960883 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R910919860 | INDICATING DEVICE Assembly parts list →L | 1 | ||
| R902519529 | STUD BOLT | 1 | ||
| R910960884 | HUB | 1 | ||
| R902572930 | SOCKET HEAD CAP SCREW | 8 | ||
| R910942230 | SCREW PLUG | 3 | ||
| R909156649 | SCREW PLUGD | 2 | ||
| R910919863 | O-RINGD | 1 | ||
| R913028081 | AXIAL SEALD | 1 | ||
| R910923835 | R-RINGD | 2 | ||
| 16 | R909831319 | DOUBLE BREAK-OFF PLUG | 1 | |
| R910938084 | DOUBLE BREAK-OFF PLUGD | 1 | ||
| R910101079 | SETSCREW | 1 | ||
| R910936812 | O-RINGD | 1 | ||
| R910104906 | HEXAGON SCREW | 2 | ||
| R910186732 | WASHER | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 350 bar, maximum pressure | A4VS |
| Operating mode | Pump / motor, closed circuit | G |
| Size (NG) | 500 | 500 |
| Series | Series 1, index 0 | 10 |
| Sealing material | FKM (fluorocarbon rubber) according to ISO 1629 | V |
| Drive shaft | Parallel keyed shaft DIN 6885 | P |
| Mounting flange | Based on ISO 3019-2 metric 8-hole | H |
| Working port | SAE flange ports A and B, located on same side, metric fastening thread | 10 |
