Unit · AXIAL-PISTON PUMP
PA4VSG500HD1GT/11L-VPH10K250N-SO534R910960963
Axial piston pump Bosch Rexroth series A4VSG, type code PA4VSG500HD1GT/11L-VPH10K250N-SO534, material number R910960963. Nominal size: NG 500. Axial piston unit: swashplate design, variable, nominal pressure 350 bar, maximum pressure (A4VS). Operating mode: pump / motor, closed circuit (G). Sealing material: FKM (fluorocarbon rubber) according to ISO 1629 (V). Drive shaft: parallel keyed shaft DIN 6885 (P). Mounting flange: based on ISO 3019-2 metric 8-hole (H). Working port: SAE flange ports A and B, located on same side, metric fastening thread (10). Valves: without valve block (0). Filtration: without filter (N). Special version no. 534.
- Number
- R910960963
- Type code
- PA4VSG500HD1GT/11L-VPH10K250N-SO534
- Group
- A4VSG 500
- Edition
- 06/2020

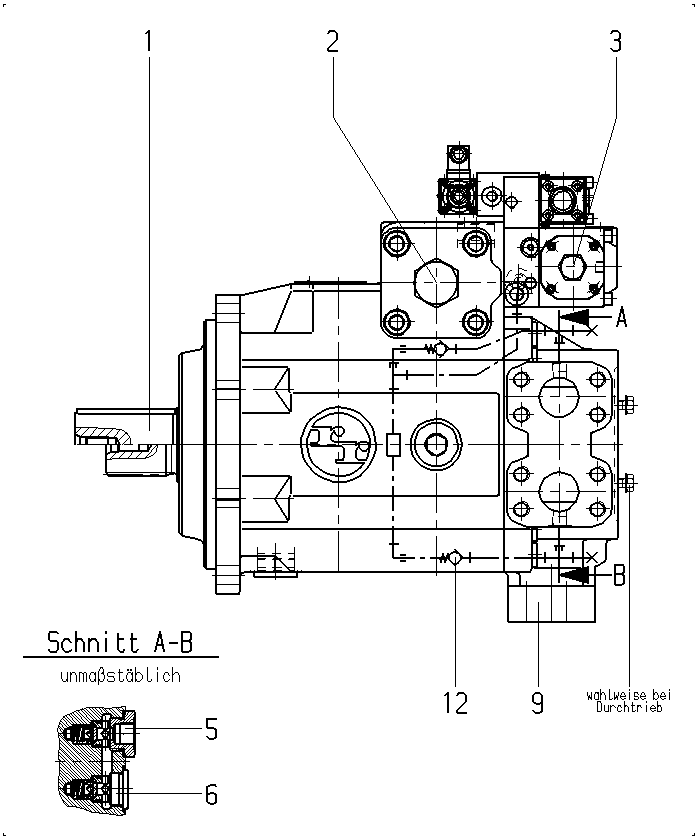

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910960882 | BASE UNIT Assembly parts list →L | 1 | ||
| R910960922 | CONTROL Assembly parts list →L | 1 | ||
| R910924418 | SPRING PACK Assembly parts list →L | 1 | ||
| R910948831 | VALVE MOUNTING KIT | 1 | ||
| R910907074 | VALVE MOUNTING KIT | 1 | ||
| R902414309 | BLANK FLANGE Assembly parts list →L | 1 | ||
| R910936635 | PIPING PLAN Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 350 bar, maximum pressure | A4VS |
| Operating mode | Pump / motor, closed circuit | G |
| Size (NG) | 500 | 500 |
| Sealing material | FKM (fluorocarbon rubber) according to ISO 1629 | V |
| Drive shaft | Parallel keyed shaft DIN 6885 | P |
| Mounting flange | Based on ISO 3019-2 metric 8-hole | H |
| Working port | SAE flange ports A and B, located on same side, metric fastening thread | 10 |
| Valves | Without valve block | 0 |
| Filtration | Without filter | N |
