Unit · AXIAL-PISTON PUMP
AA4VSO125EM1565/22R-PPB13N00-SO413R910961597
Axial piston pump Bosch Rexroth series A4VSO, type code AA4VSO125EM1565/22R-PPB13N00-SO413, material number R910961597. Nominal size: NG 125. Axial piston unit: swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar (A4VS). Operating mode: pump, open circuit (O). Drive shafts: parallel keyed shaft DIN 6885 (P). Mounting flange: based on ISO 3019-2 (metric) 4-hole (B). Through drive: without through drive and auxiliary pump (N00). Special version no. 413.
- Number
- R910961597
- Type code
- AA4VSO125EM1565/22R-PPB13N00-SO413
- Group
- A4VSO 125
- Edition
- 06/2020

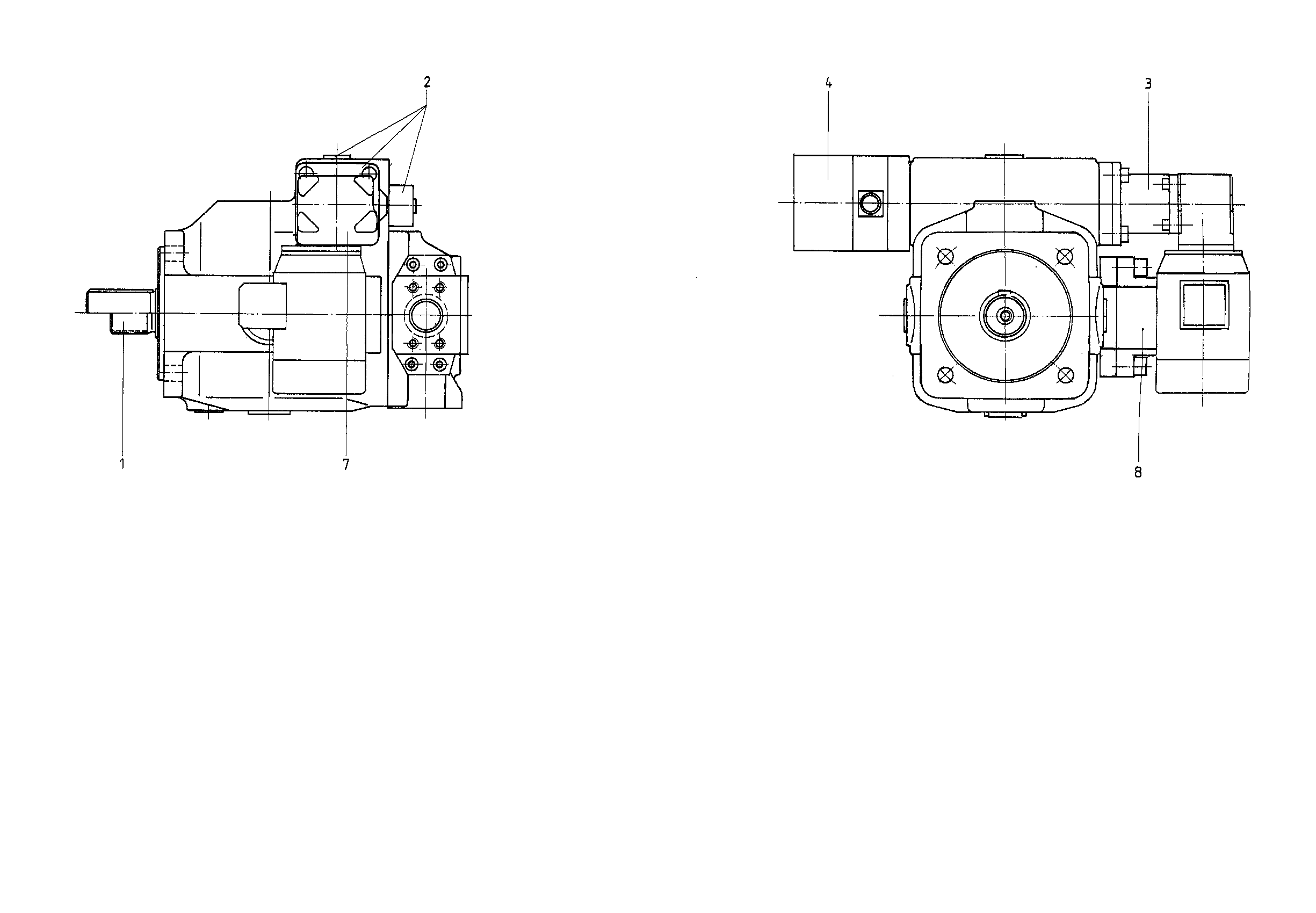

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R910936354 | BASE UNIT Assembly parts list →L | 1 | |
| 2 | R910938072 | CONTROL Assembly parts list →L | 1 | |
| 3 | R910916482 | COUPLING | 1 | |
| 4 | R910916485 | LIMIT SWITCH | 1 | |
| 7 | R910961606 | GEAR MOTOR | 1 | |
| 8 | R910914281 | ANTI-CAVITATION CHECK VALVE Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar | A4VS |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 125 | 125 |
| Drive shafts | Parallel keyed shaft DIN 6885 | P |
| Mounting flange | Based on ISO 3019-2 (metric) 4-hole | B |
| Through drive | without through drive and auxiliary pump | N00 |
