Unit · BASE UNIT
G A10VSO100 OV /31L-PPA12N00 LR -SO136R910961880
Base unit Bosch Rexroth series A10VSO, type code GA10VSO100OV/31L-PPA12N00LR-SO136, material number R910961880. Nominal size: NG 100. Version: standard version (without symbol), swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10VS). Operating mode: pump, open circuit (O). Directions of rotation: viewed on drive shaft counter-clockwise (L). Drive shafts: parallel keyed shaft DIN 6885 limited suitability for through drive (P). Mounting flange: ISO 3019-2 2-hole (A). Working port: SAE flange ports, laterally opposite fastening thread, metric (12). Through drives: without through drive (N00). Special version no. 136.
- Number
- R910961880
- Type code
- G A10VSO100 OV /31L-PPA12N00 LR -SO136
- Group
- A10VSO 100
- Edition
- 06/2020

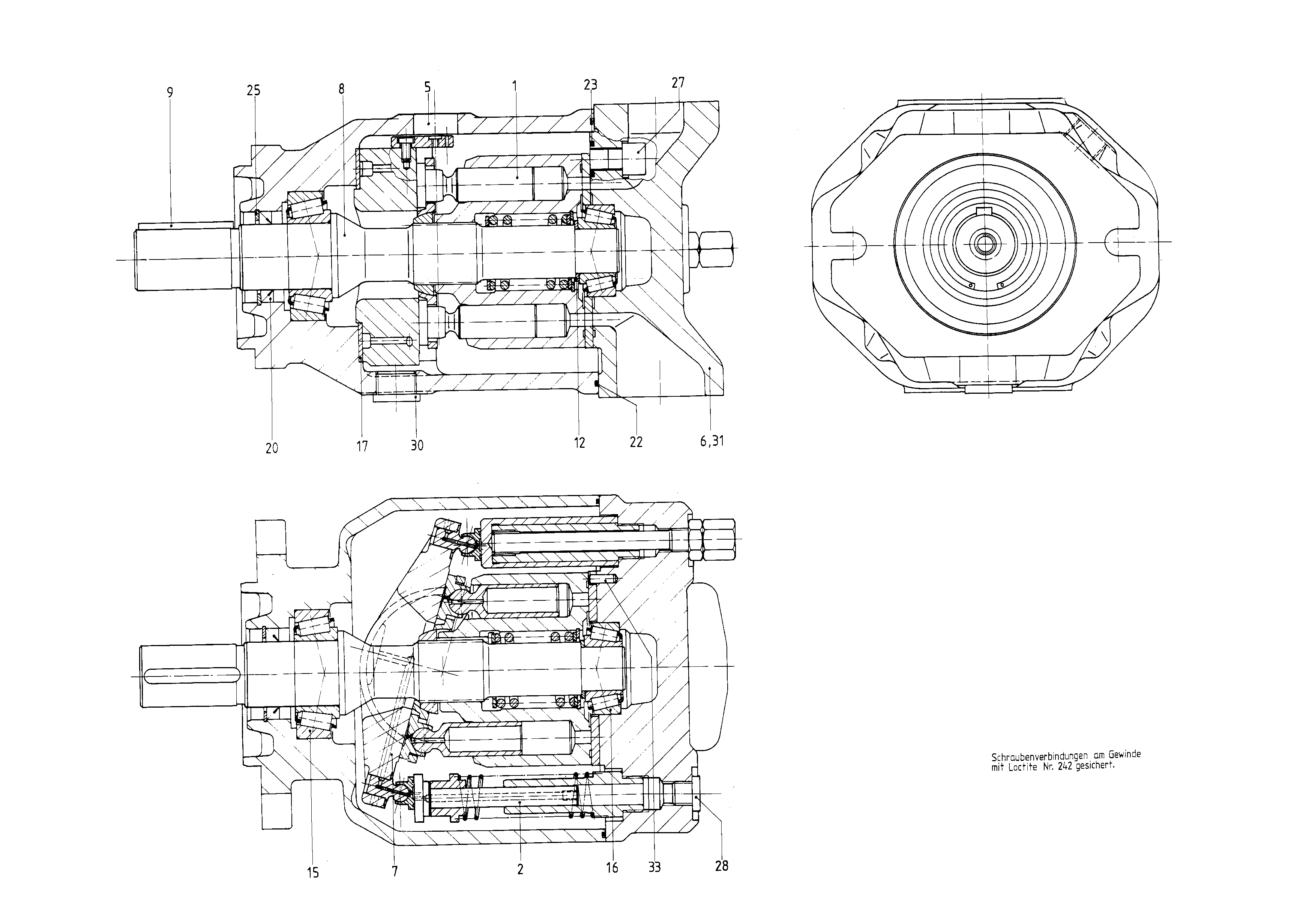

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910907681 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902538165 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R910906815 | PUMP HOUSING | 1 | ||
| R910906884 | CONNECTION PLATE | 1 | ||
| R910961048 | SWASH PLATE | 1 | ||
| R910987699 | DRIVE SHAFT | 1 | ||
| R910923559 | PARALLEL KEY | 1 | ||
| R910906878 | ADJUSTMENT SHIM | 1 | ||
| R910906908 | TAPERED-ROLLER BEARING | 1 | ||
| R910906909 | TAPERED-ROLLER BEARING | 1 | ||
| R910906881 | BEARING SHELL | 2 | ||
| R910113174 | SHAFT SEALING RINGD | 1 | ||
| R910906911 | O-RINGD | 1 | ||
| R913068283 | R-RINGD | 4 | ||
| R909832149 | RETAINING RING | 1 | ||
| R910389714 | SOCKET HEAD CAP SCREW | 4 | ||
| R909153816 | SCREW PLUG | 1 | ||
| R909153365 | SCREW PLUGD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R902533908 | STRAIGHT PIN | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Version | Standard version (without symbol), swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar | A10VS |
| Operating mode | Pump, open circuit | O |
| Sizes (NG) | 100 | 100 |
| Series | Series 3, index 1 | 31 |
| Directions of rotation | Viewed on drive shaft counter-clockwise | L |
| Drive shafts | Parallel keyed shaft DIN 6885 limited suitability for through drive | P |
| Mounting flange | ISO 3019-2 2-hole | A |
| Working port | SAE flange ports, laterally opposite fastening thread, metric | 12 |
| Through drives | without through drive | N00 |
