Unit · AXIAL-PISTON PUMP
A A10VSO 71 DR /31R-PPA12N00 -SO216R910961969
Axial piston pump Bosch Rexroth series A10VSO, type code AA10VSO71DR/31R-PPA12N00-SO216, material number R910961969. Nominal size: NG 71. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10VS). Operating mode: pump, open circuit (O). Control device: pressure controller hydraulic (DR). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: NBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluid (P). Drive shaft: parallel keyed shaft DIN 6885 permissible through-drive torque (P). Mounting flange: ISO 3019-2 2-hole (A). Working port: SAE flange ports according to ISO 6162, metric fastening thread laterally opposite (12). Through drive: without through drive (N00). Special version no. 216.
- Number
- R910961969
- Type code
- A A10VSO 71 DR /31R-PPA12N00 -SO216
- Group
- A10VSO 71
- Edition
- 06/2020

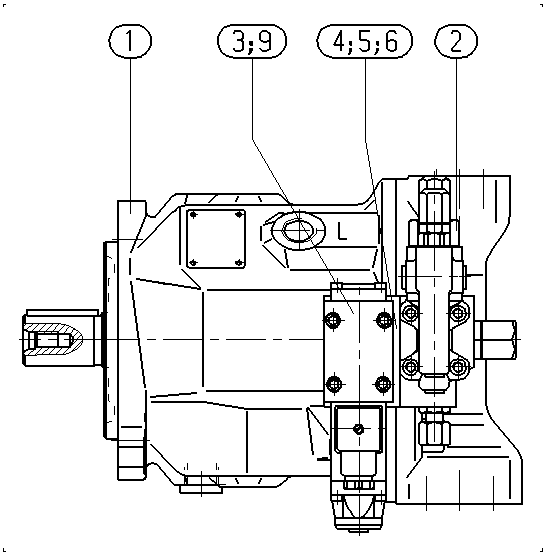

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910949211 | BASE UNIT Assembly parts list →L | 1 | ||
| R902532419 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910996456 | DIRECTIONAL SPOOL VALVE Assembly parts list →L | 1 | ||
| R910923189 | CONTROL BLOCK | 1 | ||
| R910478474 | SOCKET HEAD CAP SCREW | 4 | ||
| R910515078 | O-RINGD | 3 | ||
| R910785105 | SOCKET HEAD CAP SCREW | 4 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar | A10VS |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 71 | 71 |
| Control device | Pressure controller hydraulic | DR |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | NBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluid | P |
| Drive shaft | Parallel keyed shaft DIN 6885 permissible through-drive torque | P |
| Mounting flange | ISO 3019-2 2-hole | A |
| Working port | SAE flange ports according to ISO 6162, metric fastening thread laterally opposite | 12 |
| Through drive | Without through drive | N00 |
