Unit · AXIAL-PISTON PUMP

AA10VSO100DR/31R-PPA12L30-SO217R910962034

Axial piston pump Bosch Rexroth series A10VSO, type code AA10VSO100DR/31R-PPA12L30-SO217, material number R910962034. Nominal size: NG 100. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10VS). Operating mode: pump, open circuit (O). Control device: pressure controller hydraulic (DR). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: NBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluid (P). Drive shaft: parallel keyed shaft DIN 6885 permissible through-drive torque (P). Mounting flange: ISO 3019-2 2-hole (A). Working port: SAE flange ports according to ISO 6162, metric fastening thread laterally opposite (12). Special version no. 217.

Number
R910962034
Type code
AA10VSO100DR/31R-PPA12L30-SO217
Group
A10VSO 100
Edition
06/2020

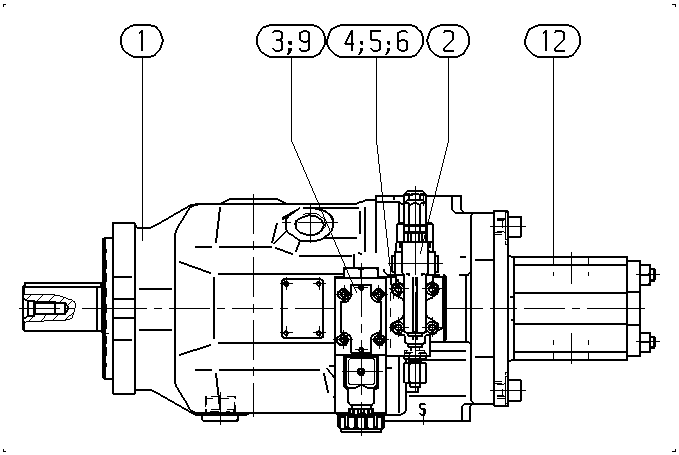

AA10VSO100DR/31R-PPA12L30-SO217 — Drawing
Pos.NumberNameQtyAdd to inquiry
R910913562BASE UNIT Assembly parts list →L1
R902414978CONTROL VALVE Assembly parts list →L1
R910996456DIRECTIONAL SPOOL VALVE Assembly parts list →L1
R910923189CONTROL BLOCK1
R910478474SOCKET HEAD CAP SCREW4
R910515078O-RING3
R910785105SOCKET HEAD CAP SCREW4
0510725104HYDRAULIC GEAR PUMPL1
61R910714917SOCKET HEAD CAP SCREW2

Parameters from the type code

ItemMeaningCode
Axial piston unitSwashplate design, variable, nominal pressure 280 bar, maximum pressure 350 barA10VS
Operating modePump, open circuitO
Size (NG)100100
Control devicePressure controller hydraulicDR
SeriesSeries 3, index 131
Direction of rotationViewed on drive shaft clockwiseR
Sealing materialNBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluidP
Drive shaftParallel keyed shaft DIN 6885 permissible through-drive torqueP
Mounting flangeISO 3019-2 2-holeA
Working portSAE flange ports according to ISO 6162, metric fastening thread laterally opposite12
