Unit · BASE UNIT
G AA10V E 28 OV /50W1-PSF68N00R910962973
Base unit Bosch Rexroth series A10VM, type code GAA10VE28OV/50W1-PSF68N00, material number R910962973. Nominal size: NG 28. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10V). Operating mode: motor, plug-in design, open and closed circuits (E). Direction of rotation: viewed on drive shaft bi-directional (W). Minimum displacement: vg min [cm3] steplessly adjustable from/to (1). Mounting flange: special flange; 2 hole (F). Valves: without valve (0).
- Number
- R910962973
- Type code
- G AA10V E 28 OV /50W1-PSF68N00
- Group
- A10VE 28
- Edition
- 06/2020

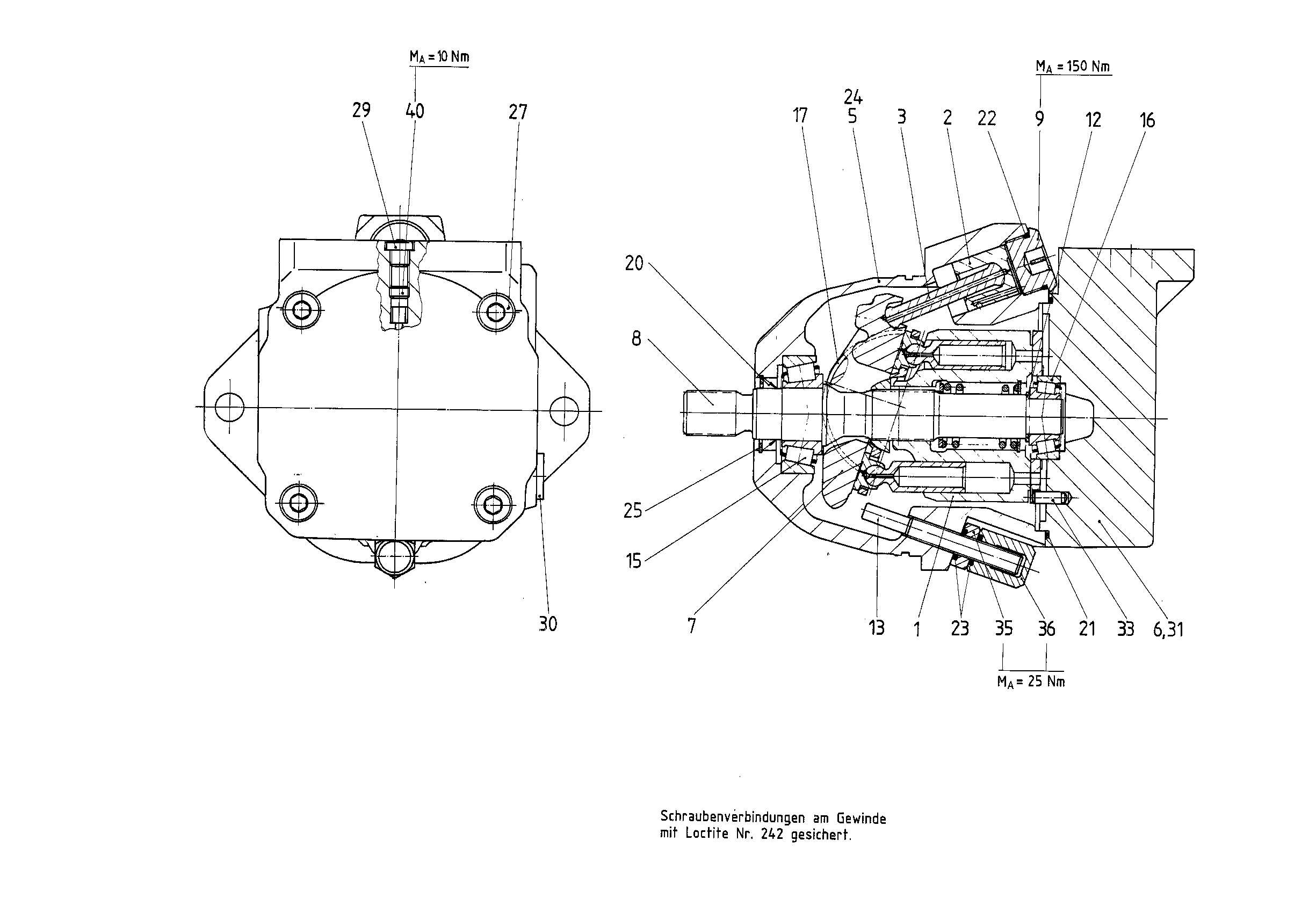

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910988570 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R910928600 | ADJUSTING PISTON | 1 | ||
| R902439967 | PISTON ROD | 1 | ||
| R910962962 | MOTOR HOUSING | 1 | ||
| R910961765 | CONNECTION PLATE | 1 | ||
| R902443524 | SWASH PLATE | 1 | ||
| 8 | R902417366 | DRIVE SHAFT | 1 | |
| R902447686 | SCREW PLUG Assembly parts list →L | 1 | ||
| R902400789 | ADJUSTMENT SHIM | 1 | ||
| 13 | R910933408 | STOP SCREW | 1 | |
| 15 | R902438109 | TAPERED-ROLLER BEARING | 1 | |
| 16 | R902438110 | TAPERED-ROLLER BEARING | 1 | |
| 17 | R902410506 | BEARING SHELL | 2 | |
| R910794325 | SHAFT SEALING RINGD | 1 | ||
| 21 | R913052046 | O-RINGD | 1 | |
| R910514691 | O-RINGD | 2 | ||
| 24 | R910942134 | R-RINGD | 1 | |
| R902403815 | RETAINING RING | 1 | ||
| R910121266 | SOCKET HEAD CAP SCREW | 4 | ||
| R913011600 | SCREW PLUGD | 1 | ||
| R909153338 | SCREW PLUG | 1 | ||
| 31 | R909831318 | DOUBLE BREAK-OFF PLUG | 3 | |
| 33 | R902533908 | STRAIGHT PIN | 1 | |
| 35 | R910998240 | NUT | 1 | |
| 36 | R910961839 | CAP NUT | 1 | |
| R910910177 | SHUTTLE VALVE | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar | A10V |
| Operating mode | Motor, plug-in design, open and closed circuits | E |
| Size (NG) | 28 | 28 |
| Direction of rotation | Viewed on drive shaft bi-directional | W |
| Minimum displacement | Vg min [cm3] steplessly adjustable from/to | 1 |
| Mounting flange | Special flange; 2 hole | F |
| Valves | Without valve | 0 |
