Unit · BASE UNIT
G A10V O 71 OV /31R-PSC11N00 LR -SO136R910963071
Base unit Bosch Rexroth series A10VO, type code GA10VO71OV/31R-PSC11N00LR-SO136, material number R910963071. Nominal size: NG 71. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft Clockwise (R). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections Fastening thread according to ISO 6162, metric; rear working ports metric Not for through drive (11). Through drive: without through drive (N00).
- Number
- R910963071
- Type code
- G A10V O 71 OV /31R-PSC11N00 LR -SO136
- Group
- A10VO 71
- Edition
- 06/2020

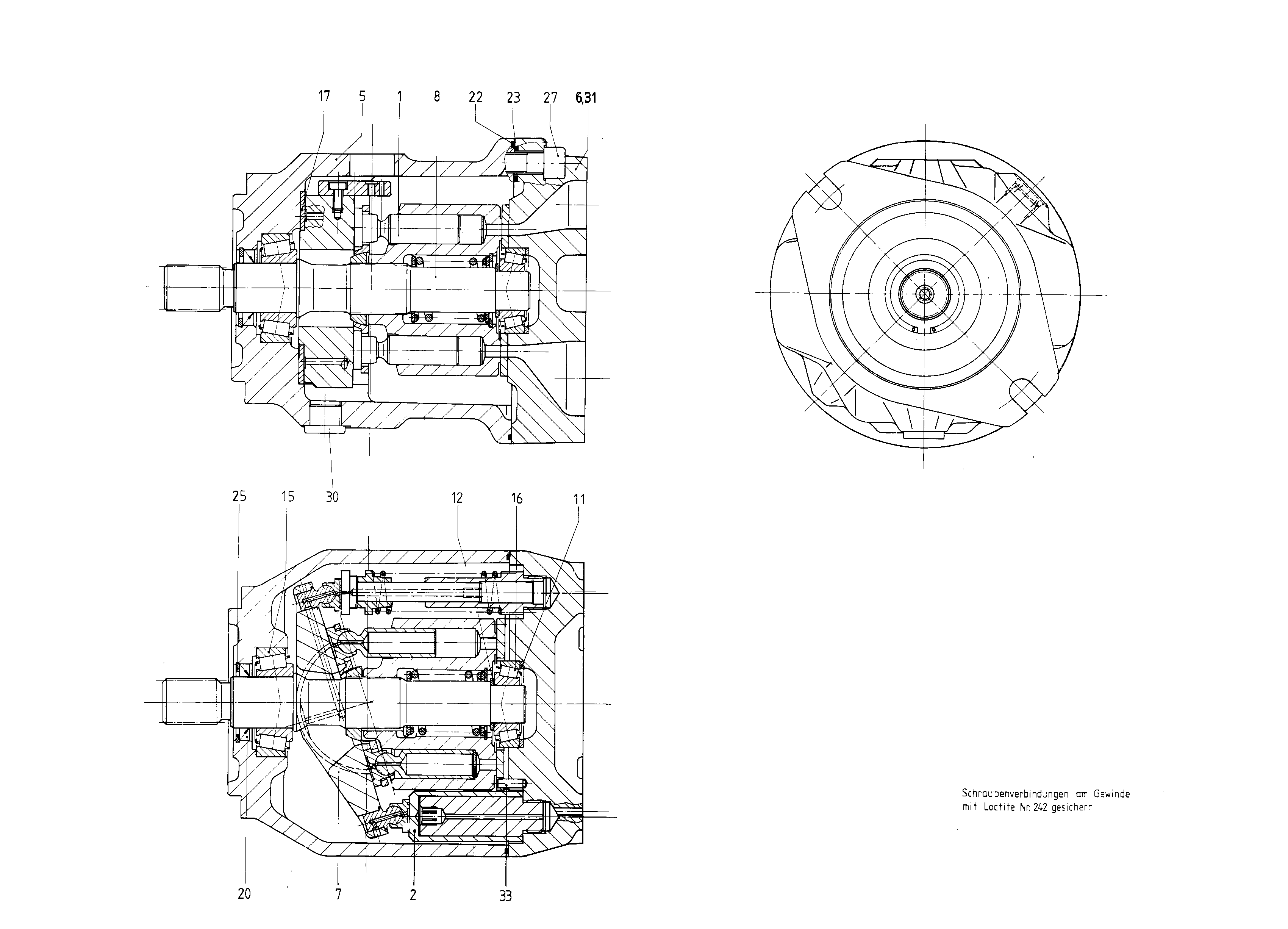

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910956007 | ROTARY GROUP Assembly parts list →L | 1 | ||
| 2 | R910917199 | ADJUSTING PIECE Assembly parts list →L | 1 | |
| 5 | R910917320 | PUMP HOUSING | 1 | |
| 6 | R902436535 | CONNECTION PLATE | 1 | |
| 7 | R910961022 | SWASH PLATE | 1 | |
| 8 | R910998844 | DRIVE SHAFT | 1 | |
| R910939005 | ADJUSTMENT SHIM | 1 | ||
| R910720224 | TAPERED-ROLLER BEARING | 1 | ||
| R910720232 | TAPERED-ROLLER BEARING | 1 | ||
| R910902777 | BEARING SHELL | 2 | ||
| R910764701 | SHAFT SEALING RINGD | 1 | ||
| R910720194 | O-RINGD | 1 | ||
| R913052118 | R-RINGD | 4 | ||
| R910941918 | RETAINING RING | 1 | ||
| R910110272 | SOCKET HEAD CAP SCREW | 4 | ||
| R909153339 | SCREW PLUGD | 1 | ||
| 31 | R909831318 | DOUBLE BREAK-OFF PLUG | 1 | |
| R902533908 | STRAIGHT PIN | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 71 | 71 |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft Clockwise | R |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Working port | SAE flange connections Fastening thread according to ISO 6162, metric; rear working ports metric Not for through drive | 11 |
| Through drive | Without through drive | N00 |
