Unit · AXIAL-PISTON PUMP

A A10V O 28 DFR1/31R-PSC11N00 -SO379R910963955

Axial piston pump Bosch Rexroth series A10VO, type code AA10VO28DFR1/31R-PSC11N00-SO379, material number R910963955. Nominal size: NG 28. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Control device: with flow controller X-T plugged, with flushing function (DFR1). Direction of rotation: viewed on drive shaft Clockwise (R). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections Fastening thread according to ISO 6162, metric; rear working ports metric Not for through drive (11). Through drive: without through drive (N00). Special version no. 379.

Number: R910963955
Type code: A A10V O 28 DFR1/31R-PSC11N00 -SO379
Group: A10VO 28
Edition: 06/2020

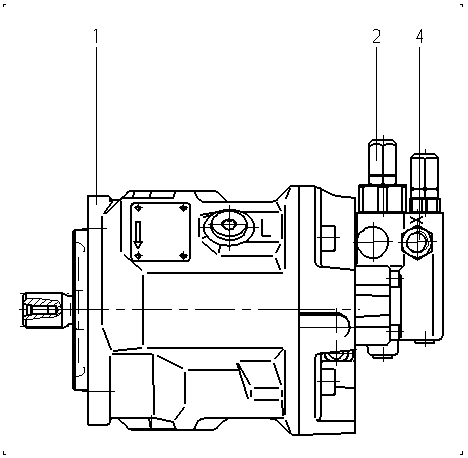

A A10V O 28 DFR1/31R-PSC11N00 -SO379 — Drawing

Pos.	Number	Name	Qty
	R910963823	BASE UNIT Assembly parts list →L	1
	R902474552	CONTROL VALVE Assembly parts list →L	1
	R910921653	ADAPTER Assembly parts list →L	1
70	R902421944	SHIPPING PROTECTION	1
71	R902421946	SHIPPING PROTECTION	1
72	R902602016	SEAL SCREW	1
73	R902602008	SEAL SCREW	1
75	R909830326	NAMEPLATE	1

Parameters from the type code

Item	Meaning	Code
Axial piston unit	Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi)	A10V
Operating mode	Pump, open circuit	O
Size (NG)	28	28
Control device	With flow controller X-T plugged, with flushing function	DFR1
Series	Series 3, index 1	31
Direction of rotation	Viewed on drive shaft Clockwise	R
Mounting flange	Based on ISO 3019-1 (SAE) 2-hole	C
Working port	SAE flange connections Fastening thread according to ISO 6162, metric; rear working ports metric Not for through drive	11
Through drive	Without through drive	N00

Parameters from the type code
