Unit · CONTROL
V A6V M 355 HD1D /63-P010ER910964739
Control Bosch Rexroth series A6VM, type code VA6VM355HD1D/63-P010E, material number R910964739. Nominal size: NG 355. Axial piston unit: bent-axis design, variable (A6V). Operating mode: motor (M). Control device: proportional control, hydraulic ΔpSt = 10 bar (HD1). Pressure control (only for HD and EP): pressure control Fixed setting (D). Drive shaft: parallel keyed shaft DIN 6885 (P). Working port: SAE working ports Without valve 0 A and B at rear 01 (010). Swivel angle sensor: electric swivel angle sensor (E).
- Number
- R910964739
- Type code
- V A6V M 355 HD1D /63-P010E
- Group
- A6VM 355
- Edition
- 06/2020

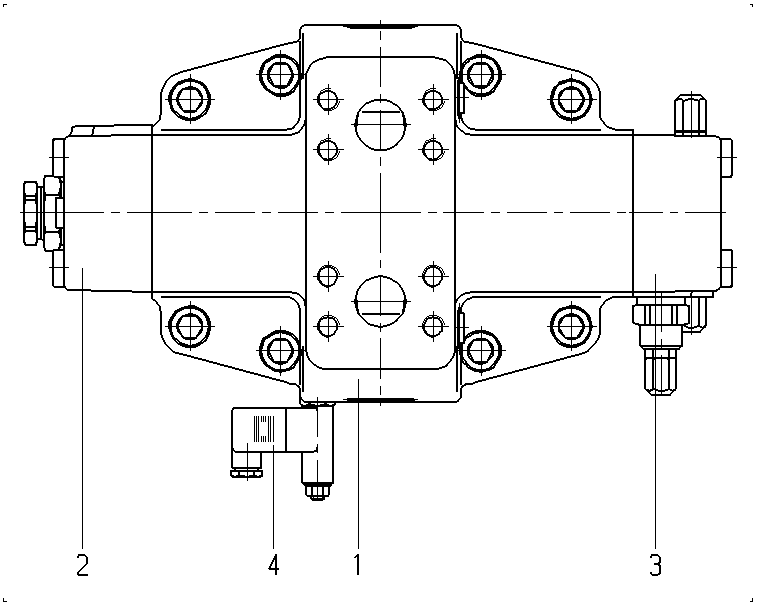

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910961562 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R910939084 | CONTROL PART Assembly parts list →L | 1 | ||
| R910939260 | COVER Assembly parts list →L | 1 | ||
| R910963272 | INDUCTIVE POS.TRANSDUCER Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | A6V |
| Operating mode | Motor | M |
| Size (NG) | 355 | 355 |
| Control device | Proportional control, hydraulic ΔpSt = 10 bar | HD1 |
| Pressure control (only for HD and EP) | Pressure control Fixed setting | D |
| Series | Series 6, index 3 | 63 |
| Drive shaft | Parallel keyed shaft DIN 6885 | P |
| Working port | SAE working ports Without valve 0 A and B at rear 01 | 010 |
| Swivel angle sensor | Electric swivel angle sensor | E |
