Unit · AXIAL-PISTON PUMP
ALAA10VO28DRG/50L-PSC12N00-SO390R910964924
Axial piston pump Bosch Rexroth series A10VO, type code ALAA10VO28DRG/50L-PSC12N00-SO390, material number R910964924. Nominal size: NG 28. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Control device: with pressure cut-off Hydraulic Remote controlled (DRG). Direction of rotation: viewed on drive shaft Counter-clockwise (L). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections according to ISO 6162, working ports metric Fastening thread metric; lateral top bottom For through drive (12). Through drive: without through drive (N00). Special version no. 390.
- Number
- R910964924
- Type code
- ALAA10VO28DRG/50L-PSC12N00-SO390
- Group
- A10VO 28
- Edition
- 06/2020

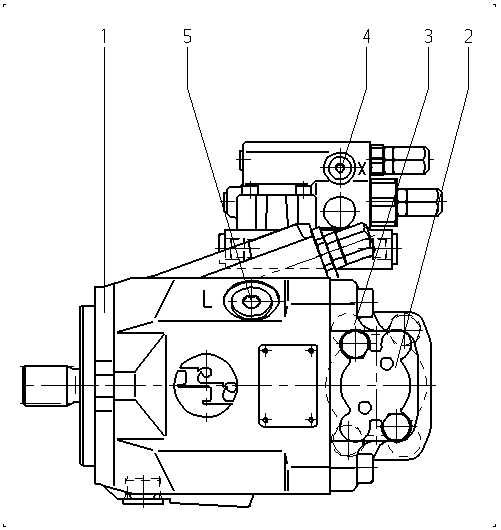

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910949359 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902400574 | FLANGE COVER | 1 | ||
| R902400582 | FLANGE COVER | 1 | ||
| R902602014 | SEAL SCREW | 1 | ||
| R909153338 | SCREW PLUG | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 28 | 28 |
| Control device | With pressure cut-off Hydraulic Remote controlled | DRG |
| Direction of rotation | Viewed on drive shaft Counter-clockwise | L |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Working port | SAE flange connections according to ISO 6162, working ports metric Fastening thread metric; lateral top bottom For through drive | 12 |
| Through drive | Without through drive | N00 |
