Unit · AXIAL-PISTON PUMP
A A10V O 71 DFLR/31R-PSC12K07 -SO496R910966259
Axial piston pump Bosch Rexroth series A10VO, type code AA10VO71DFLR/31R-PSC12K07-SO496, material number R910966259. Nominal size: NG 71. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Control device: pressure, flow and power controller (DFLR). Direction of rotation: viewed on drive shaft Clockwise (R). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections according to ISO 6162, working ports metric Fastening thread metric; lateral top bottom For through drive (12). Through drive: 127-2 (C) 1 1/4 in 14T 12/24DP (K07). Special version no. 496.
- Number
- R910966259
- Type code
- A A10V O 71 DFLR/31R-PSC12K07 -SO496
- Group
- A10VO 71
- Edition
- 06/2020

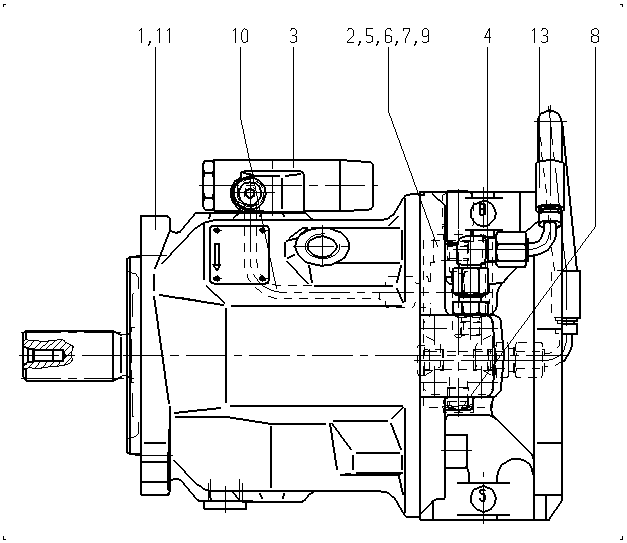

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910965965 | BASE UNIT Assembly parts list →L | 1 | ||
| R902533313 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R902533217 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R909154478 | SCREW PLUG | 2 | ||
| R910965980 | INTERMEDIATE PLATE | 1 | ||
| R910478474 | SOCKET HEAD CAP SCREW | 4 | ||
| R910515078 | O-RING | 3 | ||
| R913011601 | SCREW PLUG | 1 | ||
| R910946752 | NOZZLE | 1 | ||
| R910965976 | PIPING Assembly parts list →L | 1 | ||
| R910963610 | POWER DIAGRAM | 1 | ||
| R910966205 | PIPING Assembly parts list →L | 1 | ||
| 14 | R902434482 | SEAL | 1 | |
| 60 | R909154493 | SAFETY CAP | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 71 | 71 |
| Control device | Pressure, flow and power controller | DFLR |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft Clockwise | R |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Working port | SAE flange connections according to ISO 6162, working ports metric Fastening thread metric; lateral top bottom For through drive | 12 |
| Through drive | 127-2 (C) 1 1/4 in 14T 12/24DP | K07 |
