Unit · AXIAL-PISTON PUMP
AA7VO250LRDN1/63R-PZB02ER910966295
Axial piston pump Bosch Rexroth series A7VO, type code AA7VO250LRDN1/63R-PZB02E, material number R910966295. Nominal size: NG 250.
- Number
- R910966295
- Type code
- AA7VO250LRDN1/63R-PZB02E
- Group
- A7VO 250
- Edition
- 06/2020

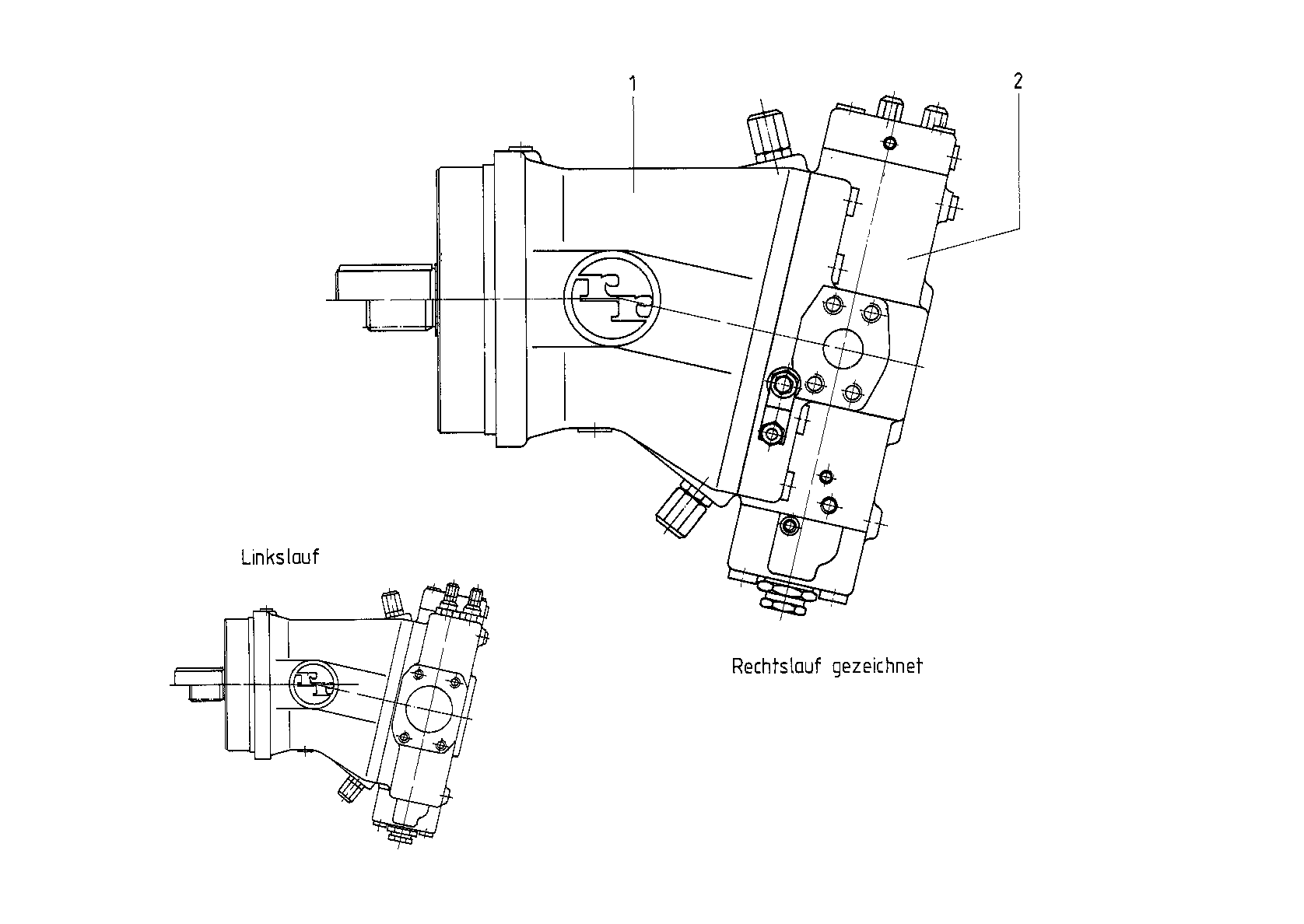

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910966287 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R910966298 | CONTROL Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Bent axis design, variable, nominal pressure 350 bar, peak pressure 400 bar | A7V | |
| 250 | 250 | |
| with hydraulic stroke limiter Δp = 10 bar initial position Vg min | LRDN1 | |
| Direction of rotation 250 355 500, with view on drive shaft clockwise | R | |
| Drive shaft 250 355 500, splined shaft to DIN 5480 | Z | |
| Mounting flange 250 355 500, similar to ISO 3019-2 4-hole | B | |
| SAE- flanged ports B or A, on opposite side (metric fixing bolts) SAE- flanged port S, on opposite side (metric fixing bolts) | 02 | |
| With electric swivel angle indicator | E |
