Unit · CONTROL
V A7V O 250 LRDN1/63R-P 02ER910966298
Control Bosch Rexroth series A7VO, type code VA7VO250LRDN1/63R-P02E, material number R910966298. Nominal size: NG 250.
- Number
- R910966298
- Type code
- V A7V O 250 LRDN1/63R-P 02E
- Group
- A7VO 250
- Edition
- 06/2020

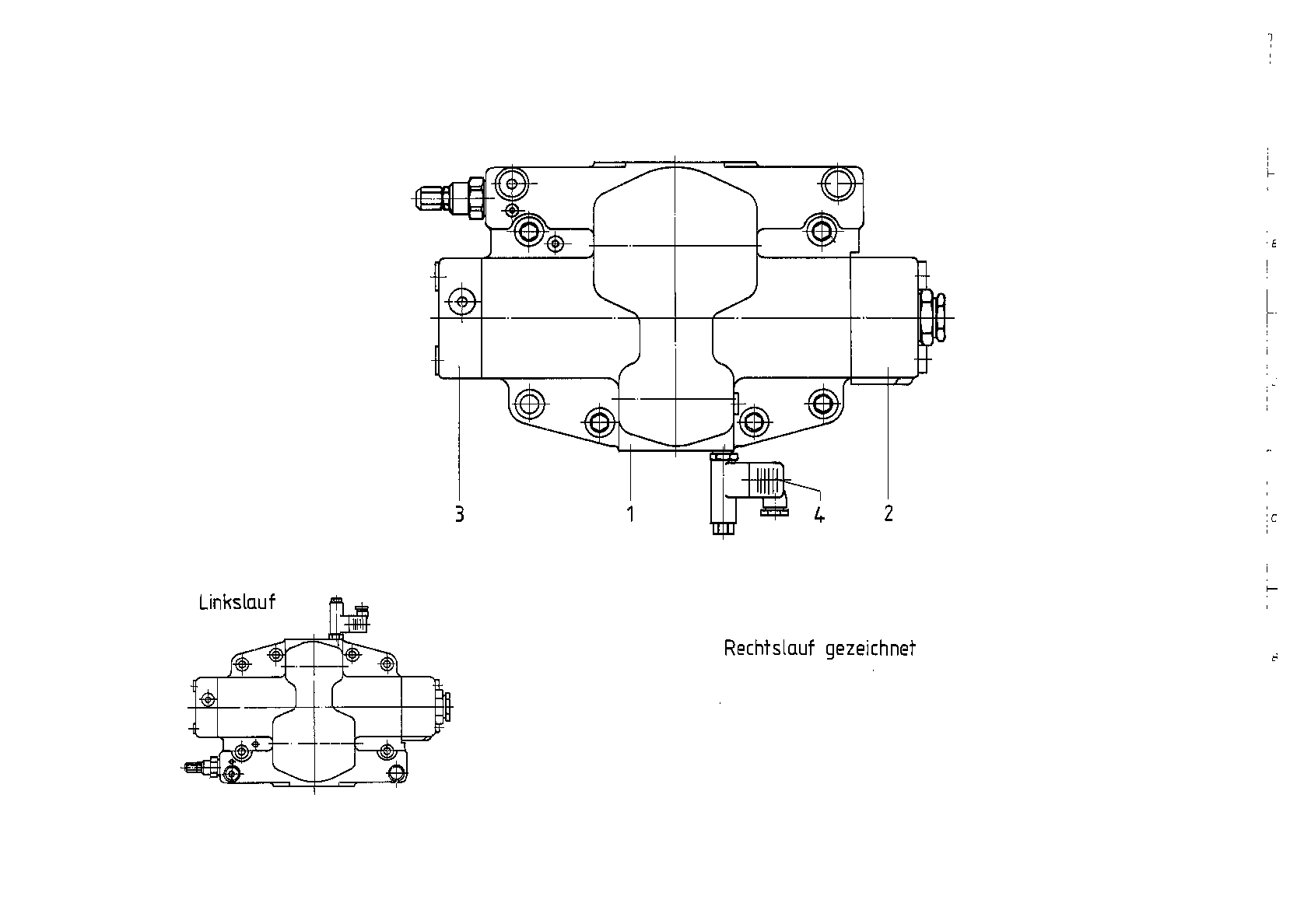

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910940080 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| 2 | R910931745 | CONTROL PART Assembly parts list →L | 1 | |
| 3 | R910930575 | COVER Assembly parts list →L | 1 | |
| 4 | R910927063 | INDUCTIVE POS.TRANSDUCER Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Bent axis design, variable, nominal pressure 350 bar, peak pressure 400 bar | A7V | |
| 250 | 250 | |
| with hydraulic stroke limiter Δp = 10 bar initial position Vg min | LRDN1 | |
| Series 6, Index 3 | 63 | |
| Keyed parallel shaft to DIN 6885 | P | |
| SAE- flanged ports B or A, on opposite side (metric fixing bolts) SAE- flanged port S, on opposite side (metric fixing bolts) | 02 | |
| With electric swivel angle indicator | E |
