Unit · AXIAL-PISTON PUMP
A A10VSO 18 DFR1/31R-PKC62K01 -SO 20R910967530
Axial piston pump Bosch Rexroth series A10VSO, type code AA10VSO18DFR1/31R-PKC62K01-SO20, material number R910967530. Nominal size: NG 18. Operating mode: pump, open circuit (O). Control device: with flow controller X-T plugged, with flushing function (DFR1). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: NBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluid (P). Drive shaft: parallel keyed shaft permissible through-drive torque ISO 3019-1 (K). Mounting flange: ISO 3019-1 2-hole (C). Working port: SAE flange ports according to ISO 6162, UNC fastening thread laterally opposite (62). Through drive: 82-2 (A) 5/8 in 9T 16/32DP (K01). Special version no. 20.
- Number
- R910967530
- Type code
- A A10VSO 18 DFR1/31R-PKC62K01 -SO 20
- Group
- A10VSO 18
- Edition
- 06/2020

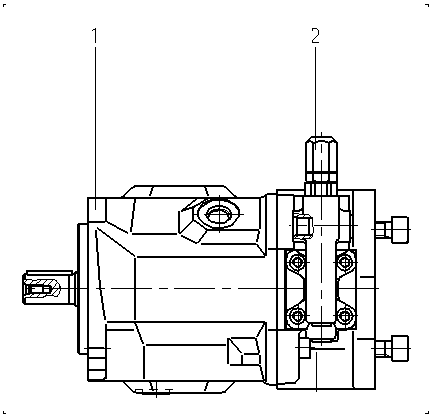

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910947281 | BASE UNIT Assembly parts list →L | 1 | ||
| R902533275 | CONTROL VALVE Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Operating mode | Pump, open circuit | O |
| Size (NG) | 18 | 18 |
| Control device | with flow controller X-T plugged, with flushing function | DFR1 |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | NBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluid | P |
| Drive shaft | Parallel keyed shaft permissible through-drive torque ISO 3019-1 | K |
| Mounting flange | ISO 3019-1 2-hole | C |
| Working port | SAE flange ports according to ISO 6162, UNC fastening thread laterally opposite | 62 |
| Through drive | 82-2 (A) 5/8 in 9T 16/32DP | K01 |
