Unit · CONTROL
V A4VSG 71 HDU /11XR910967625

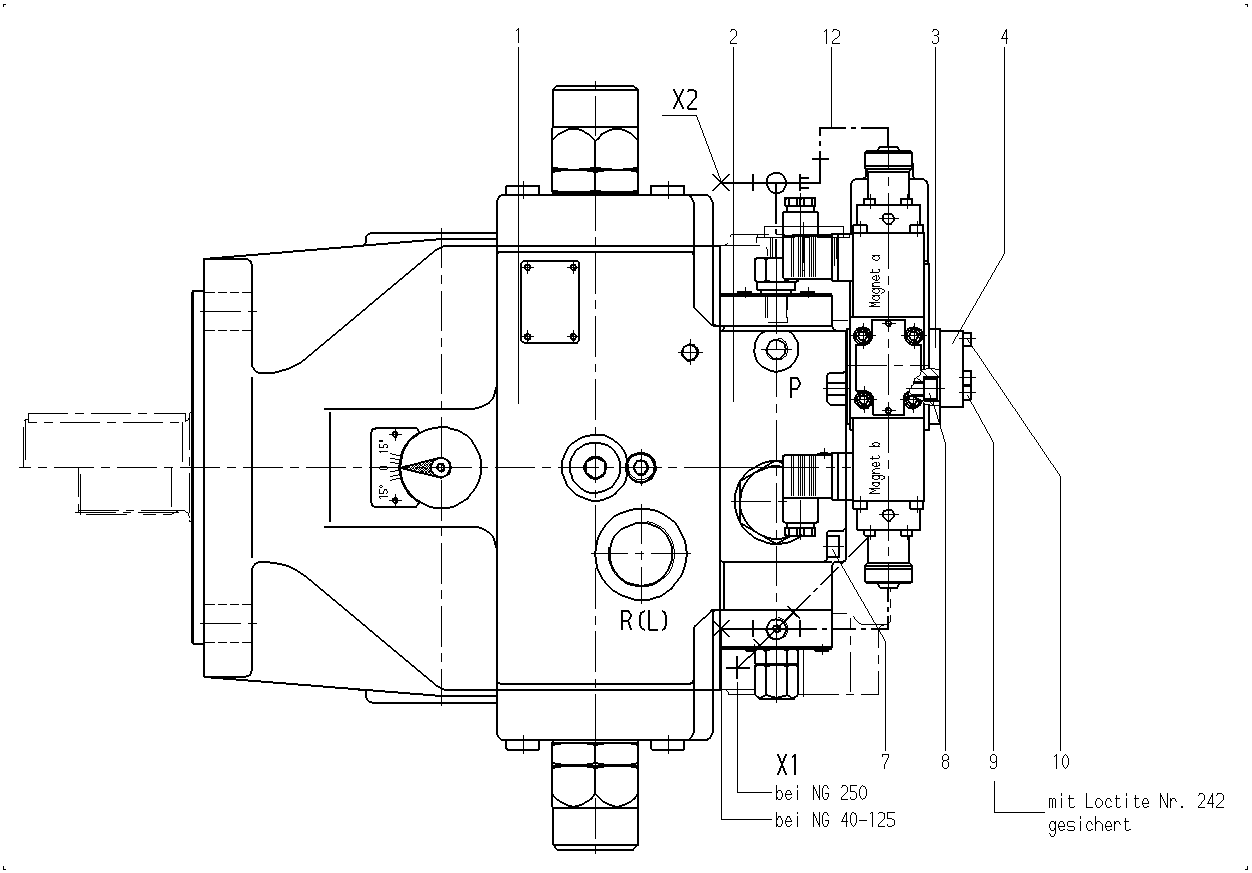

Control Bosch Rexroth series A4VSO, type code VA4VSG71HDU/11X, material number R910967625. Nominal size: NG 71. Axial piston unit: swashplate design (A4VSG). Control device: hydraulic control, pilot-pressure related (HD).
- Number
- R910967625
- Type code
- V A4VSG 71 HDU /11X
- Group
- A4VSG 71
- Edition
- 06/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910919555 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R910937853 | CONTROL MODULE Assembly parts list →L | 1 | ||
| R910926483 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910920920 | CHANGE-OVER PLATE Assembly parts list →L | 1 | ||
| R910387053 | SOCKET HEAD CAP SCREW | 2 | ||
| R910938326 | SOCKET HEAD CAP SCREW | 2 | ||
| R910913349 | SOCKET HEAD CAP SCREW | 1 | ||
| R910932357 | SOCKET HEAD CAP SCREW | 3 | ||
| R910926623 | PIPING PLAN Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design | A4VSG |
| Size (NG) | 71 | 71 |
| Control device | Hydraulic control, pilot-pressure related | HD |
| Power control and electrical control of pilot pressure | U | |
| Series | Series 1, index 1 | 11 |
