Unit · BASE UNIT
GHAA10VSO140 OV /31L-PKD62N00R910967848
Base unit Bosch Rexroth series A10VSO, type code GHAA10VSO140OV/31L-PKD62N00, material number R910967848. Nominal size: NG 140. Version: high-speed version (external dimensions are not affected by this option) (H). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft counter-clockwise (L). Sealing material: NBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluid (P). Drive shaft: parallel keyed shaft permissible through-drive torque ISO 3019-1 (K). Working port: SAE flange ports according to ISO 6162, UNC fastening thread laterally opposite (62). Through drive: without through drive (N00).
- Number
- R910967848
- Type code
- GHAA10VSO140 OV /31L-PKD62N00
- Group
- A10VSO 140
- Edition
- 06/2020

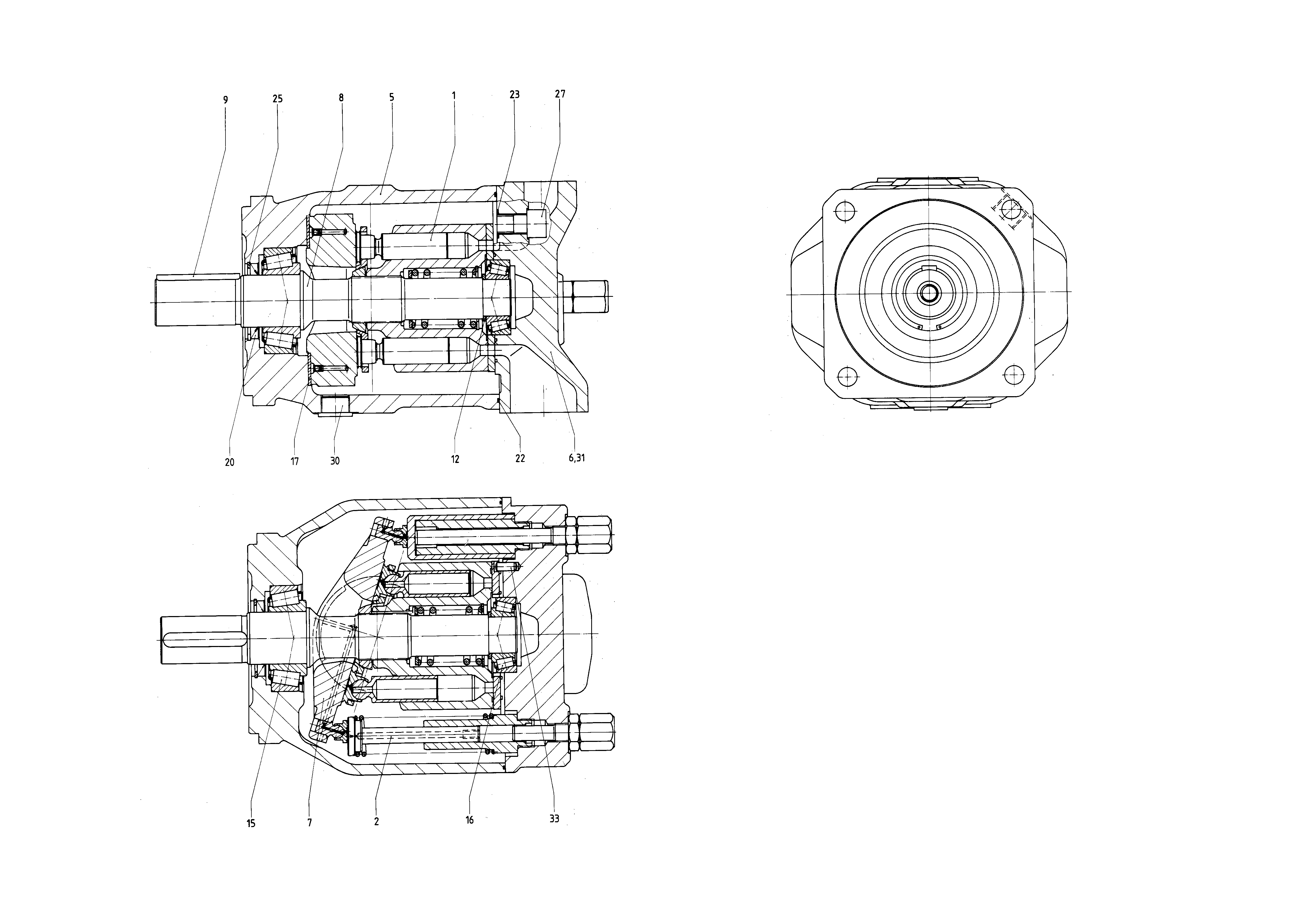

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902483664 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902538158 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R910918191 | PUMP HOUSING | 1 | ||
| R902534412 | CONNECTION PLATE | 1 | ||
| R910961079 | SWASH PLATE | 1 | ||
| R902410695 | DRIVE SHAFT | 1 | ||
| R910935425 | PARALLEL KEY | 1 | ||
| R902425273 | ADJUSTMENT SHIM | 1 | ||
| R910918203 | TAPERED-ROLLER BEARING | 1 | ||
| R910918201 | TAPERED-ROLLER BEARING | 1 | ||
| R910918174 | BEARING SHELL | 2 | ||
| R910978001 | SHAFT SEALING RINGD | 1 | ||
| R910930460 | O-RINGD | 1 | ||
| R913053033 | R-RINGD | 4 | ||
| R910941920 | RETAINING RING | 1 | ||
| R910659169 | SOCKET HEAD CAP SCREW | 4 | ||
| R909154480 | SCREW PLUGD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R910922017 | STRAIGHT PIN | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Version | High-speed version (external dimensions are not affected by this option) | H |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 140 | 140 |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft counter-clockwise | L |
| Sealing material | NBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluid | P |
| Drive shaft | Parallel keyed shaft permissible through-drive torque ISO 3019-1 | K |
| Working port | SAE flange ports according to ISO 6162, UNC fastening thread laterally opposite | 62 |
| Through drive | Without through drive | N00 |
