Unit · AXIAL-PISTON PUMP
A A10VSO140 DFE /31R-PSB12N00 -SO479R910967927
Axial piston pump Bosch Rexroth series A10VSO, type code AA10VSO140DFE/31R-PSB12N00-SO479, material number R910967927. Nominal size: NG 140. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10VS). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: NBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluid (P). Drive shaft: splined shaft standard shaft ISO 3019-1 (S). Working port: SAE flange ports according to ISO 6162, metric fastening thread laterally opposite (12). Through drive: without through drive (N00). Special version no. 479.
- Number
- R910967927
- Type code
- A A10VSO140 DFE /31R-PSB12N00 -SO479
- Group
- A10VSO 140
- Edition
- 06/2020

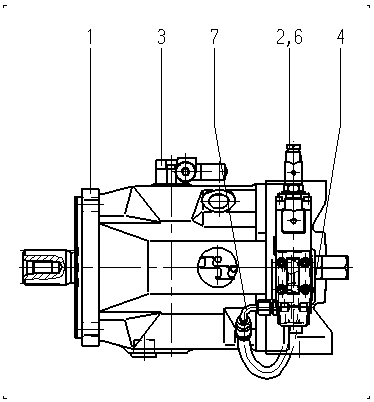

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910961534 | BASE UNIT Assembly parts list →L | 1 | ||
| R902425762 | ELECTRONIC CONTROLS Assembly parts list →L | 1 | ||
| R910947340 | INDUCTIVE POS.TRANSDUCER Assembly parts list →L | 1 | ||
| R902404047 | INTERMEDIATE PLATE Assembly parts list →L | 1 | ||
| R910914728 | SOCKET HEAD CAP SCREW | 4 | ||
| R910969085 | HOSE ASSEMBLY Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar | A10VS |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 140 | 140 |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | NBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluid | P |
| Drive shaft | Splined shaft standard shaft ISO 3019-1 | S |
| Working port | SAE flange ports according to ISO 6162, metric fastening thread laterally opposite | 12 |
| Through drive | Without through drive | N00 |
