Unit · AXIAL-PISTON PUMP

A A10VSO 45 DFE /31R-PPA12K01 -SO479R910968194

Axial piston pump Bosch Rexroth series A10VSO, type code AA10VSO45DFE/31R-PPA12K01-SO479, material number R910968194. Nominal size: NG 45. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10VS). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: NBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluid (P). Drive shaft: parallel keyed shaft DIN 6885 permissible through-drive torque (P). Mounting flange: ISO 3019-2 2-hole (A). Working port: SAE flange ports according to ISO 6162, metric fastening thread laterally opposite (12). Through drive: 82-2 (A) 5/8 in 9T 16/32DP (K01). Special version no. 479.

Number
R910968194
Type code
A A10VSO 45 DFE /31R-PPA12K01 -SO479
Group
A10VSO 45
Edition
06/2020

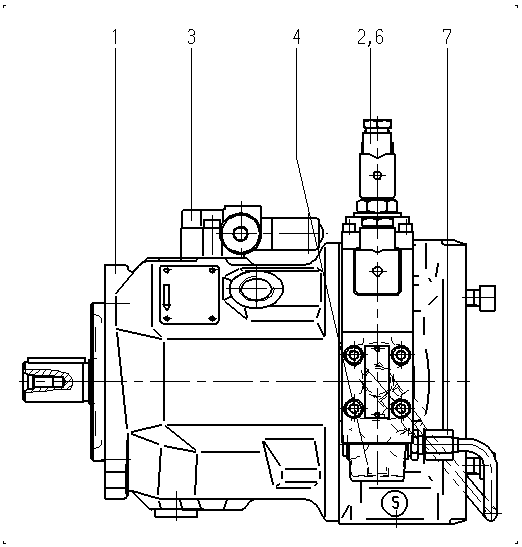

A A10VSO 45 DFE /31R-PPA12K01 -SO479 — Drawing
Pos.NumberNameQtyAdd to inquiry
R910968067BASE UNIT Assembly parts list →L1
R902425762ELECTRONIC CONTROLS Assembly parts list →L1
R910947340INDUCTIVE POS.TRANSDUCER Assembly parts list →L1
R902404047INTERMEDIATE PLATE Assembly parts list →L1
R910914728SOCKET HEAD CAP SCREW4
R910969522HOSE ASSEMBLY Assembly parts list →L1

Parameters from the type code

ItemMeaningCode
Axial piston unitSwashplate design, variable, nominal pressure 280 bar, maximum pressure 350 barA10VS
Operating modePump, open circuitO
Size (NG)4545
SeriesSeries 3, index 131
Direction of rotationViewed on drive shaft clockwiseR
Sealing materialNBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluidP
Drive shaftParallel keyed shaft DIN 6885 permissible through-drive torqueP
Mounting flangeISO 3019-2 2-holeA
Working portSAE flange ports according to ISO 6162, metric fastening thread laterally opposite12
Through drive82-2 (A) 5/8 in 9T 16/32DPK01
