Unit · AXIAL-PISTON PUMP
A A10VSO 18 DFR1/31R-PPA12N00 -SO108R910968776
Axial piston pump Bosch Rexroth series A10VSO, type code AA10VSO18DFR1/31R-PPA12N00-SO108, material number R910968776. Nominal size: NG 18. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10VS). Operating mode: pump, open circuit (O). Control device: with flow controller X-T plugged, with flushing function (DFR1). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: NBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluid (P). Drive shaft: parallel keyed shaft DIN 6885 permissible through-drive torque (P). Mounting flange: ISO 3019-2 2-hole (A). Working port: SAE flange ports according to ISO 6162, metric fastening thread laterally opposite (12). Through drive: without through drive (N00). Special version no. 108.
- Number
- R910968776
- Type code
- A A10VSO 18 DFR1/31R-PPA12N00 -SO108
- Group
- A10VSO 18
- Edition
- 06/2020

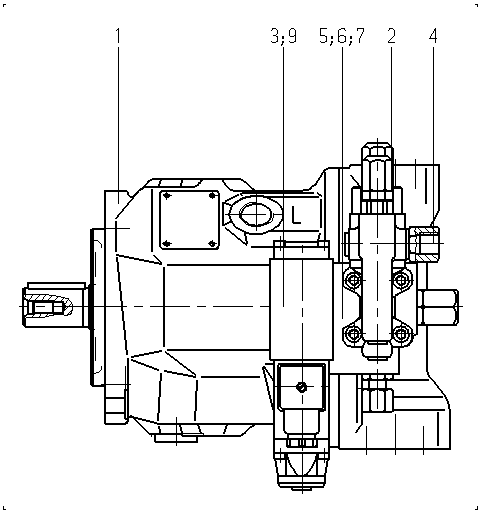

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910940436 | BASE UNIT Assembly parts list →L | 1 | ||
| R902448799 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910996456 | DIRECTIONAL SPOOL VALVE Assembly parts list →L | 1 | ||
| R910921653 | ADAPTER Assembly parts list →L | 1 | ||
| R902472640 | CONTROL BLOCK Assembly parts list →L | 1 | ||
| R902650500 | SOCKET HEAD CAP SCREW | 4 | ||
| R902434482 | SEAL | 1 | ||
| 8 | R909154478 | SCREW PLUG | 1 | |
| R910785105 | SOCKET HEAD CAP SCREW | 4 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar | A10VS |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 18 | 18 |
| Control device | with flow controller X-T plugged, with flushing function | DFR1 |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | NBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluid | P |
| Drive shaft | Parallel keyed shaft DIN 6885 permissible through-drive torque | P |
| Mounting flange | ISO 3019-2 2-hole | A |
| Working port | SAE flange ports according to ISO 6162, metric fastening thread laterally opposite | 12 |
| Through drive | Without through drive | N00 |
Other versions 14
- R902548109 A A10VSO 18 DFR1/31R-PPA12N00
- R910945178 A A10VSO 18 DFR1/31R-PPA12N00
- R902436797 A A10VSO 18 DFR1/31R-PPA12N00 -S1413
- R910987982 A A10VSO 18 DFR1/31R-PPA12N00 -SO 32
- R910966386 A A10VSO 18 DFR1/31R-PPA12N00 -SO155
- R910960695 A A10VSO 18 DFR1/31R-PPA12N00 -SO169
- R910937773 A A10VSO 18 DFR1/31R-PPA12N00 -SO239
- R910931769 AA10VSO18DFR1/31R-PPA12N00-SO109
- R910949010 AA10VSO18DFR1/31R-PPA12N00-SO13
- R910966985 AA10VSO18DFR1/31R-PPA12N00-SO448
- R910991175 AA10VSO18DFR1/31R-PPA12N00-SO74
- R902404318 AL A10VSO 18 DFR1/31R-PPA12N00
- R902410408 AL A10VSO 18 DFR1/31R-PPA12N00
- R902546867 AL A10VSO 18 DFR1/31R-PPA12N00
