Unit · CONTROL
V A6V M 250 EP2 /63-V010R910969292
Control Bosch Rexroth series A6VM, type code VA6VM250EP2/63-V010, material number R910969292. Nominal size: NG 250. Axial piston unit: bent-axis design, variable (A6V). Operating mode: motor (M). Control device: proportional control, electric (with HIRSCHMANN connector – without suppressor diode) U = 24 V (EP2). Sealing material: FKM (fluoroelastomer) (V). Working port: SAE working ports Without valve 0 A and B at rear 01 (010).
- Number
- R910969292
- Type code
- V A6V M 250 EP2 /63-V010
- Group
- A6VM 250
- Edition
- 06/2020

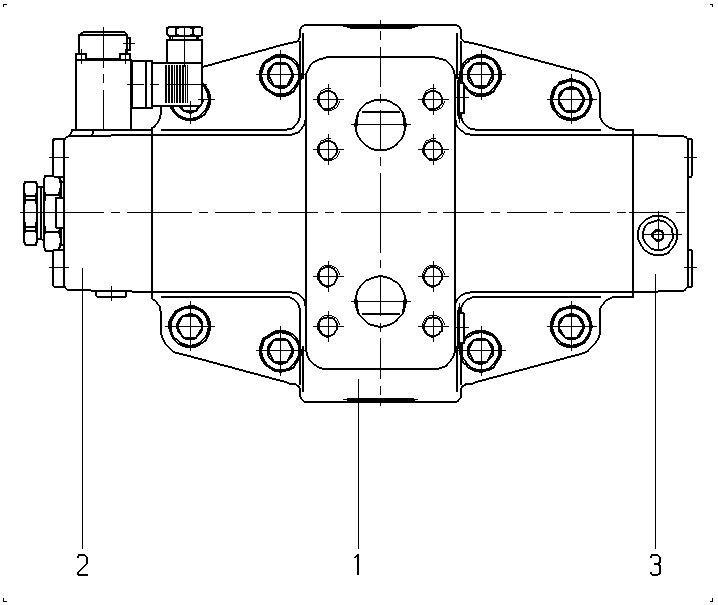

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910935478 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R910934354 | CONTROL PART Assembly parts list →L | 1 | ||
| R910934427 | COVER Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | A6V |
| Operating mode | Motor | M |
| Size (NG) | 250 | 250 |
| Control device | Proportional control, electric (with HIRSCHMANN connector – without suppressor diode) U = 24 V | EP2 |
| Series | Series 6, index 3 | 63 |
| Sealing material | FKM (fluoroelastomer) | V |
| Working port | SAE working ports Without valve 0 A and B at rear 01 | 010 |
