Unit · POMPA OSIOWO-TŁOKOWA
A A10VSO 45 DFEO/31R-PSC12N00R910969420
Axial piston pump Bosch Rexroth series A10VSO, type code AA10VSO45DFEO/31R-PSC12N00, material number R910969420. Nominal size: NG 45. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10VS). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: NBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluid (P). Drive shaft: splined shaft standard shaft ISO 3019-1 (S). Working port: SAE flange ports according to ISO 6162, metric fastening thread laterally opposite (12). Through drive: without through drive (N00).
- Number
- R910969420
- Type code
- A A10VSO 45 DFEO/31R-PSC12N00
- Group
- A10VSO 45
- Edition
- 06/2020

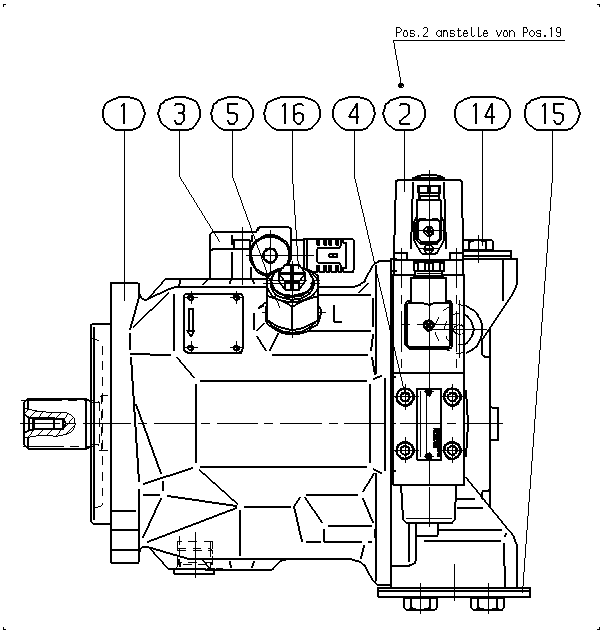

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910969403 | ZESPÓŁ PODSTAWY Assembly parts list →L | 1 | ||
| R910947340 | INDUKCYJNY PRZETWORNIK POŁOŻENIA Assembly parts list →L | 1 | ||
| R910934572 | ADAPTER Assembly parts list →L | 1 | ||
| R902400578 | POKRYWA KOŁNIERZA | 1 | ||
| R902400586 | POKRYWA KOŁNIERZA | 1 | ||
| R902602011 | ŚRUBA USZCZELNIAJĄCA | 1 | ||
| 19 | R902449557 | POKRYWA KOŁNIERZA | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar | A10VS |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 45 | 45 |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | NBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluid | P |
| Drive shaft | Splined shaft standard shaft ISO 3019-1 | S |
| Working port | SAE flange ports according to ISO 6162, metric fastening thread laterally opposite | 12 |
| Through drive | Without through drive | N00 |
