Unit · AXIAL-PISTON MOTOR
A A6V M 355 EZ2 /63W1-VZH027 VAR910969823
Axial piston motor Bosch Rexroth series A6VM, type code AA6VM355EZ2/63W1-VZH027VA, material number R910969823. Nominal size: NG 355. Axial piston unit: bent-axis design, variable (A6V). Operating mode: motor (M). Control device: two-point control, electric (with HIRSCHMANN connector – without suppressor diode) U = 24 V (EZ2). Direction of rotation: viewed on drive shaft variable (W). Setting ranges for displacement: vg min = 0 to 0.4 Vg max Vg max = Vg max to 0.8 Vg max (1). Sealing material: FKM (fluoroelastomer) (V). Drive shaft: splined shaft DIN 5480 (Z). Mounting flange: ISO 3019-2 8-hole (H). Working port: SAE working ports A and B at side, opposite Flushing and boost-pressure valve, mounted 7 (027). Swivel angle sensor: optical swivel angle sensor (V). Beginning of control: at Vg min (standard for HA) (A).
- Number
- R910969823
- Type code
- A A6V M 355 EZ2 /63W1-VZH027 VA
- Group
- A6VM 355
- Edition
- 06/2020

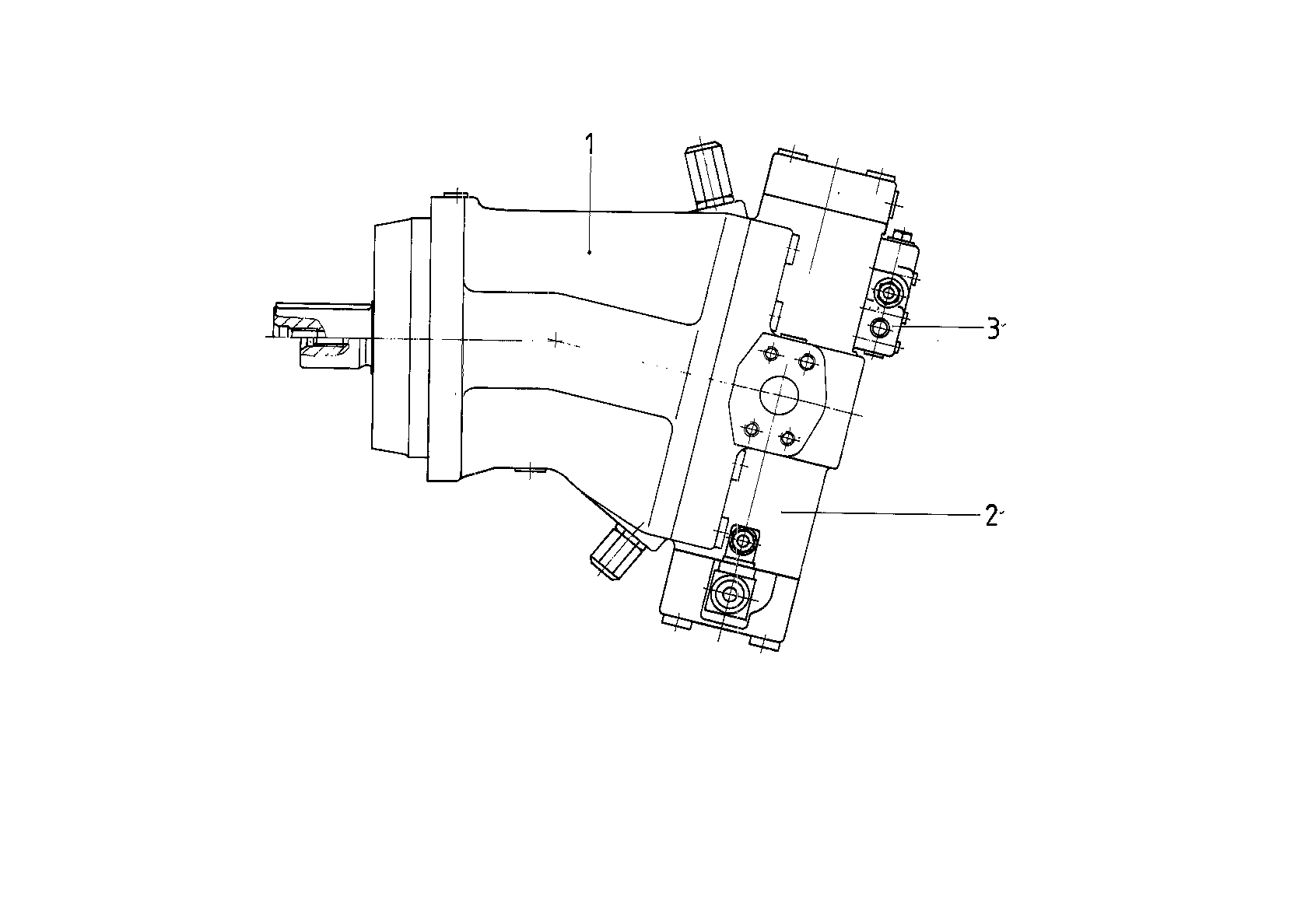

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R910969748 | AXIAL-PISTON MOTOR Assembly parts list →L | 1 | |
| 2 | R910969825 | CONTROL Assembly parts list →L | 1 | |
| 3 | R910800755 | FLUSH/BOOST PRESSURE VALVE | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | A6V |
| Operating mode | Motor | M |
| Size (NG) | 355 | 355 |
| Control device | Two-point control, electric (with HIRSCHMANN connector – without suppressor diode) U = 24 V | EZ2 |
| Series | Series 6, index 3 | 63 |
| Direction of rotation | Viewed on drive shaft variable | W |
| Setting ranges for displacement | Vg min = 0 to 0.4 Vg max Vg max = Vg max to 0.8 Vg max | 1 |
| Sealing material | FKM (fluoroelastomer) | V |
| Drive shaft | Splined shaft DIN 5480 | Z |
| Mounting flange | ISO 3019-2 8-hole | H |
| Working port | SAE working ports A and B at side, opposite Flushing and boost-pressure valve, mounted 7 | 027 |
| Swivel angle sensor | Optical swivel angle sensor | V |
| Beginning of control | At Vg min (standard for HA) | A |
