Unit · CONTROL
V A7V O 355 HD2D /63L-V 01 -SO 55R910970193
Control Bosch Rexroth series A7VO, type code VA7VO355HD2D/63L-V01-SO55, material number R910970193. Nominal size: NG 355.
- Number
- R910970193
- Type code
- V A7V O 355 HD2D /63L-V 01 -SO 55
- Group
- A7VO 355
- Edition
- 06/2020

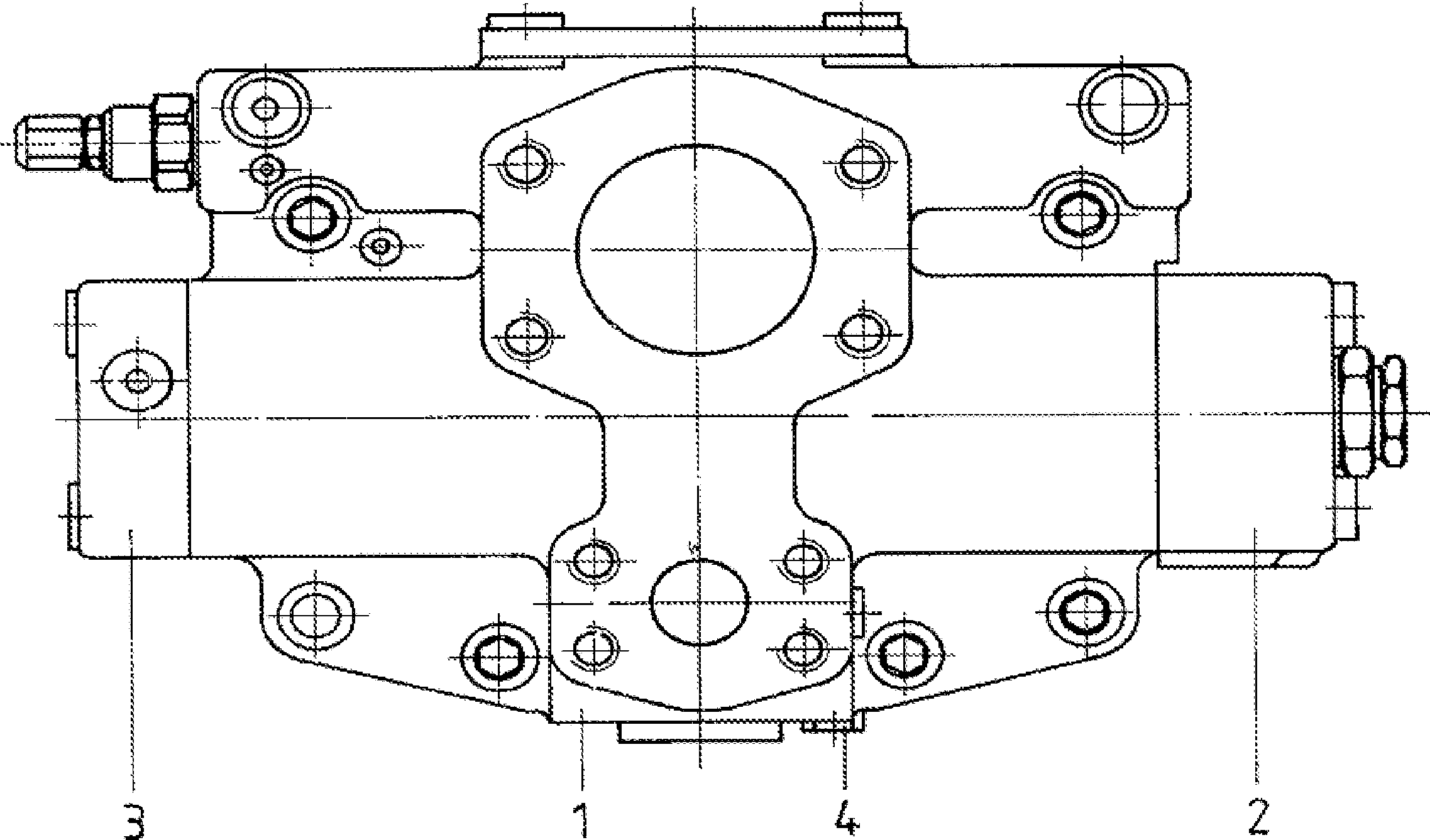

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910970194 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R910969762 | CONTROL PART Assembly parts list →L | 1 | ||
| R910967699 | COVER Assembly parts list →L | 1 | ||
| R910927370 | SCREW PLUG | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Bent axis design, variable, nominal pressure 350 bar, peak pressure 400 bar | A7V | |
| 355 | 355 | |
| Hydraulic control, pilot pressure dependent, with integrated pressure control (fixed setting) Δp = 25 bar | HD2D | |
| Series 6, Index 3 | 63 | |
| counter clockwise | L | |
| FKM (Fluoro-rubber) | V | |
| Service line connections 250 355 500, SAE-flanged port B or A, at rear (metric fixing bolts) SAE flanged port S, at rear(metric fixing bolts) | 01 |
