Unit · AXIAL-PISTON PUMP

A A10V O140 DFR1/31L-PSD62N00 -SO552R910970429

Axial piston pump Bosch Rexroth series A10VO, type code AA10VO140DFR1/31L-PSD62N00-SO552, material number R910970429. Nominal size: NG 140. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Control device: with flow controller X-T plugged, with flushing function (DFR1). Direction of rotation: viewed on drive shaft Counter-clockwise (L). Mounting flange: based on ISO 3019-1 (SAE) 2/4-hole (D). Working port: SAE flange connections according to ISO 6162, working ports UNC Fastening thread UNC; lateral top bottom For through drive (62). Through drive: without through drive (N00). Special version no. 552.

Number: R910970429
Type code: A A10V O140 DFR1/31L-PSD62N00 -SO552
Group: A10VO 140
Edition: 06/2020

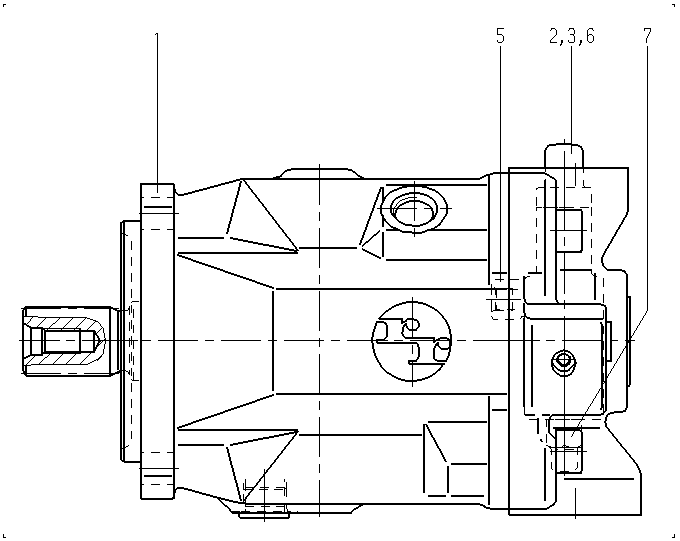

A A10V O140 DFR1/31L-PSD62N00 -SO552 — Drawing

Pos.	Number	Name	Qty
	R910918204	BASE UNIT Assembly parts list →L	1
	R910920180	CONTROL VALVE Assembly parts list →L	1
	R910920244	CONTROL VALVE Assembly parts list →L	1
	R910984004	ADAPTER Assembly parts list →L	1
	R910799998	SOCKET HEAD CAP SCREW	4
	R910960006	STROKE LIMITER Assembly parts list →L	1
14	R909151979	SCREW PLUG	1

Parameters from the type code

Item	Meaning	Code
Axial piston unit	Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi)	A10V
Operating mode	Pump, open circuit	O
Size (NG)	140	140
Control device	With flow controller X-T plugged, with flushing function	DFR1
Series	Series 3, index 1	31
Direction of rotation	Viewed on drive shaft Counter-clockwise	L
Mounting flange	Based on ISO 3019-1 (SAE) 2/4-hole	D
Working port	SAE flange connections according to ISO 6162, working ports UNC Fastening thread UNC; lateral top bottom For through drive	62
Through drive	Without through drive	N00

Parameters from the type code

Other versions 3
