Unit · AXIAL-PISTON PUMP
A A7V O 355 HD2 /63L-VZH01 -SO 14R910971146
Axial piston pump Bosch Rexroth series A7VO, type code AA7VO355HD2/63L-VZH01-SO14, material number R910971146. Nominal size: NG 355. Axial piston unit: bent-axis design, variable, nominal pressure 350 bar, maximum pressure 400 bar (A7V). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft (L). Sealing material: FKM (fluoroelastomer) (V). Drive shaft: splined shaft DIN 5480 (Z). Port plate for working lines: SAE flange ports A and S at rear (metric fastening thread) (01). Standard / special version: special version (-S).
- Number
- R910971146
- Type code
- A A7V O 355 HD2 /63L-VZH01 -SO 14
- Group
- A7VO 355
- Edition
- 06/2020

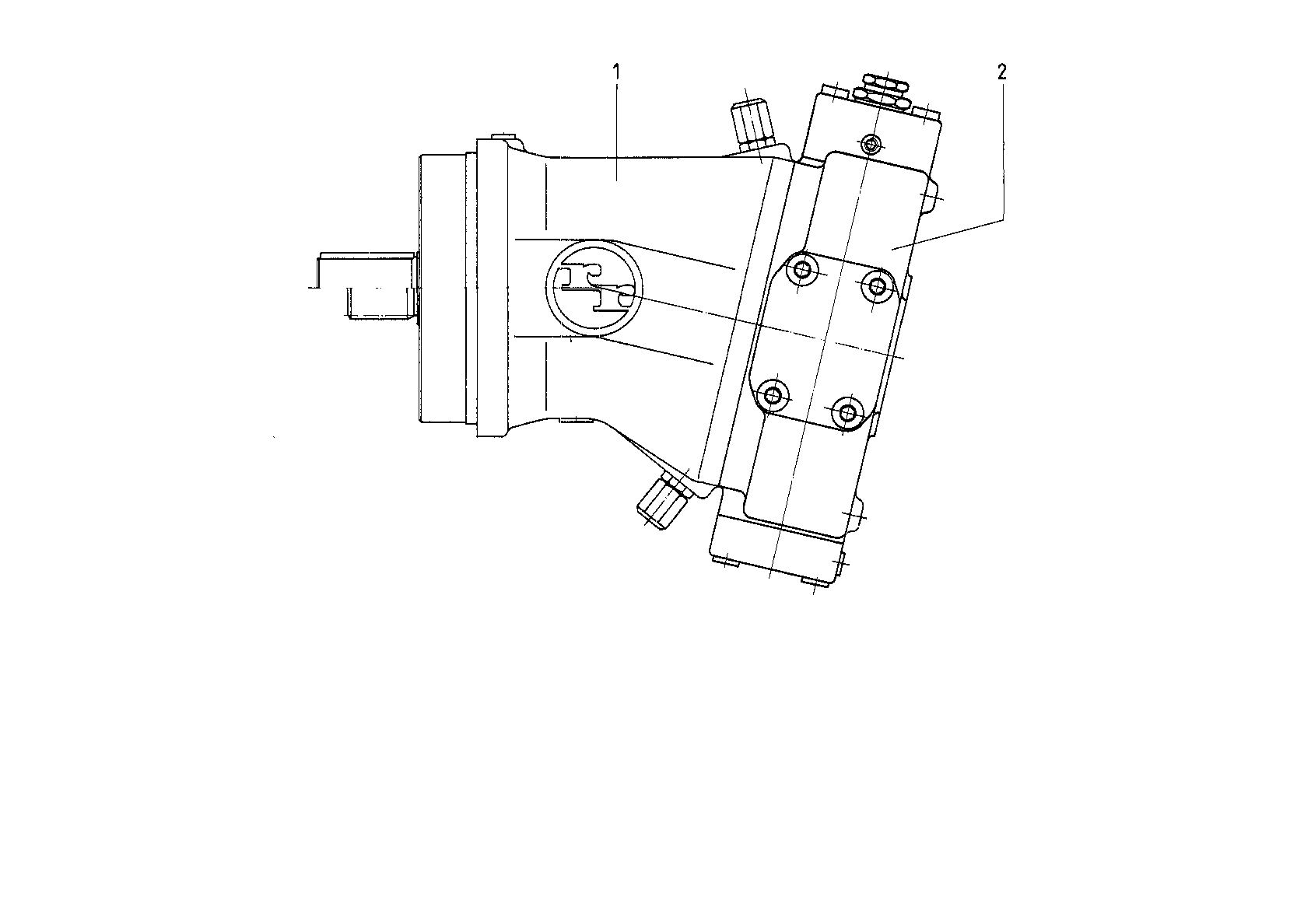

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R910970169 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | |
| 2 | R910971149 | CONTROL Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable, nominal pressure 350 bar, maximum pressure 400 bar | A7V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 355 | 355 |
| Series | Series 6, index 3 | 63 |
| Direction of rotation | Viewed on drive shaft | L |
| Sealing material | FKM (fluoroelastomer) | V |
| Drive shaft | Splined shaft DIN 5480 | Z |
| Port plate for working lines | SAE flange ports A and S at rear (metric fastening thread) | 01 |
| Standard / special version | Special version | -S |
