Unit · POMPA OSIOWO-TŁOKOWA
A A10VSO 45 DFEO/31R-PRA12K04 -SO480R910971262
Axial piston pump Bosch Rexroth series A10VSO, type code AA10VSO45DFEO/31R-PRA12K04-SO480, material number R910971262. Nominal size: NG 45. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10VS). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: NBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluid (P). Drive shaft: splined shaft ISO 3019-1 Similar to shaft "S" however for higher torque (R). Mounting flange: ISO 3019-2 2-hole (A). Working port: SAE flange ports according to ISO 6162, metric fastening thread laterally opposite (12). Through drive: 101-2 (B) 1 in 15T 16/32DP (K04). Special version no. 480.
- Number
- R910971262
- Type code
- A A10VSO 45 DFEO/31R-PRA12K04 -SO480
- Group
- A10VSO 45
- Edition
- 06/2020

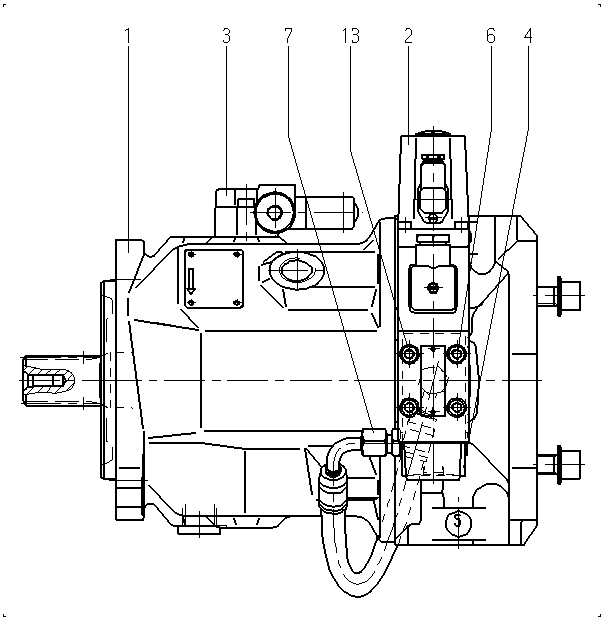

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910970975 | ZESPÓŁ PODSTAWY Assembly parts list →L | 1 | ||
| R910947340 | INDUKCYJNY PRZETWORNIK POŁOŻENIA Assembly parts list →L | 1 | ||
| R902404047 | PŁYTA POŚREDNIA Assembly parts list →L | 1 | ||
| R910969522 | WĄŻ Assembly parts list →L | 1 | ||
| 14 | R902400578 | POKRYWA KOŁNIERZA | 1 | |
| 15 | R902400586 | POKRYWA KOŁNIERZA | 1 | |
| 16 | R902602011 | ŚRUBA USZCZELNIAJĄCA | 1 | |
| 17 | R909831377 | KOREK ZABEZPIECZAJĄCY | 1 | |
| 18 | R902602977 | POKRYWA KOŁNIERZA | 1 | |
| 19 | R902452844 | POKRYWA KOŁNIERZA | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar | A10VS |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 45 | 45 |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | NBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluid | P |
| Drive shaft | Splined shaft ISO 3019-1 Similar to shaft "S" however for higher torque | R |
| Mounting flange | ISO 3019-2 2-hole | A |
| Working port | SAE flange ports according to ISO 6162, metric fastening thread laterally opposite | 12 |
| Through drive | 101-2 (B) 1 in 15T 16/32DP | K04 |
