Unit · BASE UNIT
G AA10V O 45 OV /50L-PUC13N00 -SO568R910971288
Base unit Bosch Rexroth series A10VO, type code GAA10VO45OV/50L-PUC13N00-SO568, material number R910971288. Nominal size: NG 45. Axial piston unit: swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) (A10V). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft counter-clockwise (L). Drive shaft: reduced diameter, limited suitability for through drive (U). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange ports according to ISO 6162 metric fastening thread metric not for through drive; available for laterally offset 90° counter-clockwise rotation only (13). Through drive: without through drive (N00). Special version no. 568.
- Number
- R910971288
- Type code
- G AA10V O 45 OV /50L-PUC13N00 -SO568
- Group
- A10VO 45
- Edition
- 06/2020

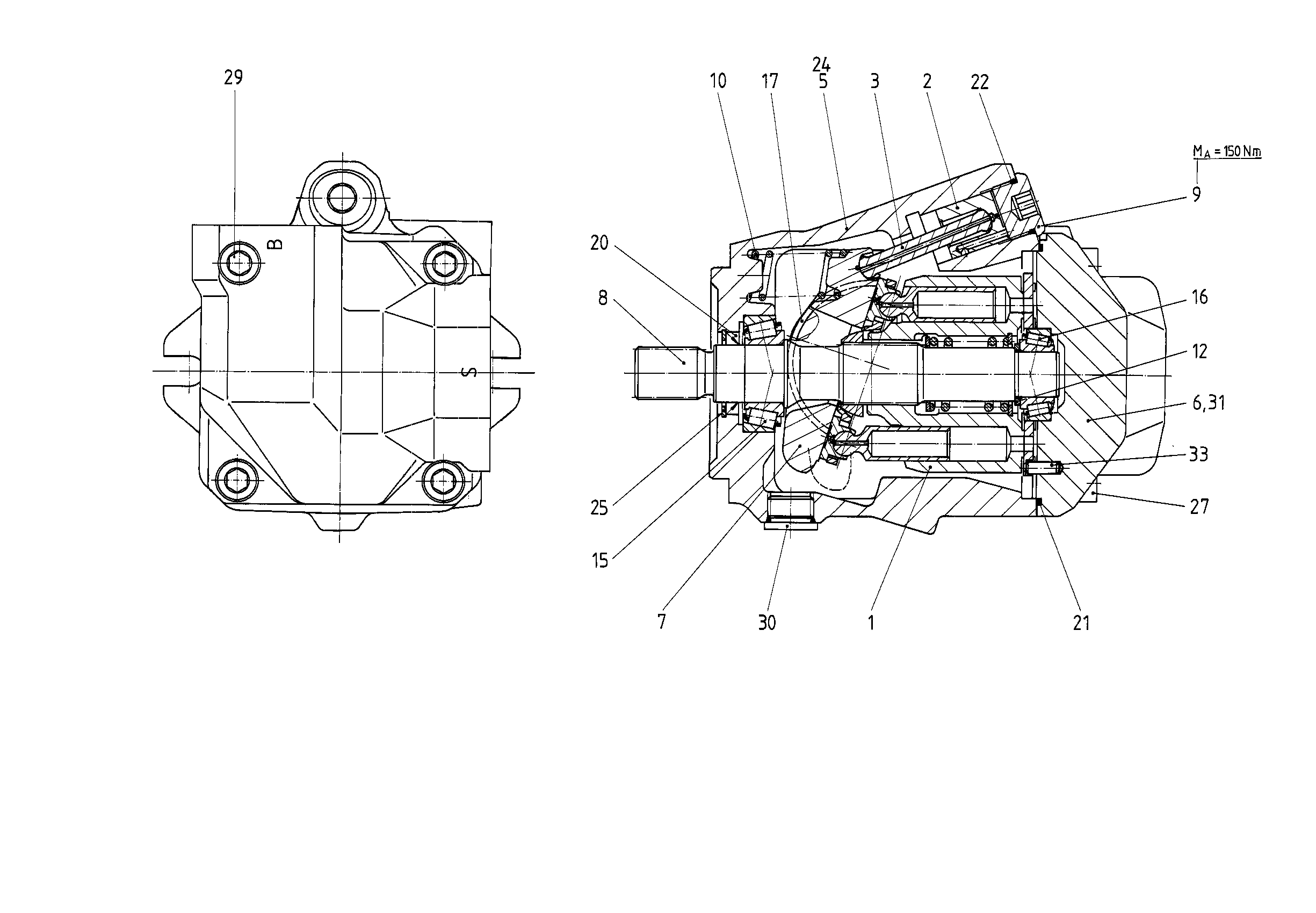

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902435270 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R910928600 | ADJUSTING PISTON | 1 | ||
| R902439068 | PISTON ROD | 1 | ||
| R910971289 | PUMP HOUSING | 1 | ||
| 6 | R910963568 | CONNECTION PLATE | 1 | |
| R902437705 | SWASH PLATE | 1 | ||
| 8 | R902417387 | DRIVE SHAFT | 1 | |
| 9 | R902447686 | SCREW PLUG Assembly parts list →L | 1 | |
| R910928606 | COMPRESSION SPRING | 1 | ||
| R910938955 | ADJUSTMENT SHIM | 1 | ||
| R910704946 | TAPERED-ROLLER BEARING | 1 | ||
| R910704954 | TAPERED-ROLLER BEARING | 1 | ||
| R910933793 | BEARING SHELL | 2 | ||
| R910793671 | SHAFT SEALING RINGD | 1 | ||
| R913052051 | O-RINGD | 1 | ||
| 24 | R910942134 | R-RINGD | 1 | |
| R902403814 | RETAINING RING | 1 | ||
| R910121142 | SOCKET HEAD CAP SCREW | 3 | ||
| R910126497 | SOCKET HEAD CAP SCREW | 1 | ||
| R909153339 | SCREW PLUGD | 2 | ||
| 31 | R909831318 | DOUBLE BREAK-OFF PLUG | 1 | |
| R902533908 | STRAIGHT PIN | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 45 | 45 |
| Direction of rotation | Viewed on drive shaft counter-clockwise | L |
| Drive shaft | reduced diameter, limited suitability for through drive | U |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Working port | SAE flange ports according to ISO 6162 metric fastening thread metric not for through drive; available for laterally offset 90° counter-clockwise rotation only | 13 |
| Through drive | Without through drive | N00 |
