Unit · AXIAL-PISTON PUMP
A A10VSO140 DFEO/31R-PSB12KB7R910971774
Axial piston pump Bosch Rexroth series A10VSO, type code AA10VSO140DFEO/31R-PSB12KB7, material number R910971774. Nominal size: NG 140. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10VS). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft clockwise (R). Drive shaft: splined shaft standard shaft ISO 3019-1 (S). Mounting flange: ISO 3019-2; 4-hole (B). Port: SAE flange ports fastening thread, top, bottom, opposite metric. (12). Through drive: ISO 180, 4-hole 1 3/4 in 13T 8/16DP (KB7).
- Number
- R910971774
- Type code
- A A10VSO140 DFEO/31R-PSB12KB7
- Group
- A10VSO 140
- Edition
- 06/2020

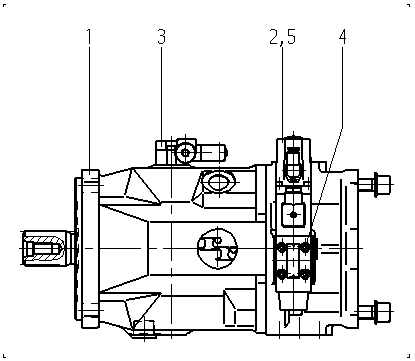

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910971759 | BASE UNIT Assembly parts list →L | 1 | ||
| R910947340 | INDUCTIVE POS.TRANSDUCER Assembly parts list →L | 1 | ||
| 14 | R902400584 | FLANGE COVER | 1 | |
| 15 | R902400594 | FLANGE COVER | 1 | |
| 16 | R902602012 | SEAL SCREW | 1 | |
| 18 | R902603708 | FLANGE COVER | 1 | |
| 19 | R902449557 | FLANGE COVER | 1 | |
| 24 | R910120464 | SOCKET HEAD CAP SCREW | 4 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar | A10VS |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 140 | 140 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Drive shaft | Splined shaft standard shaft ISO 3019-1 | S |
| Mounting flange | ISO 3019-2; 4-hole | B |
| Port | SAE flange ports fastening thread, top, bottom, opposite metric. | 12 |
| Through drive | ISO 180, 4-hole 1 3/4 in 13T 8/16DP | KB7 |
