Unit · AXIAL-PISTON PUMP

A A10V O 71 DFR1/31R-VSC12N00 -SO581R910972762

Axial piston pump Bosch Rexroth series A10VO, type code AA10VO71DFR1/31R-VSC12N00-SO581, material number R910972762. Nominal size: NG 71. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Control device: with flow controller X-T plugged, with flushing function (DFR1). Direction of rotation: viewed on drive shaft Clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections according to ISO 6162, working ports metric Fastening thread metric; lateral top bottom For through drive (12). Through drive: without through drive (N00). Special version no. 581.

Number
R910972762
Type code
A A10V O 71 DFR1/31R-VSC12N00 -SO581
Group
A10VO 71
Edition
06/2020

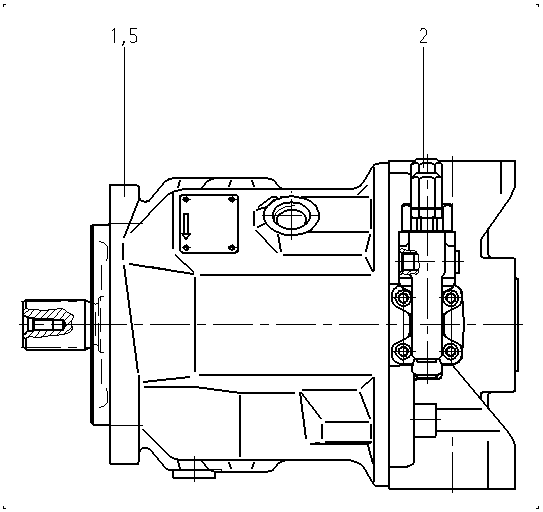

A A10V O 71 DFR1/31R-VSC12N00 -SO581 — Drawing
Pos.NumberNameQtyAdd to inquiry
R910961645BASE UNIT Assembly parts list →L1
R902474552CONTROL VALVE Assembly parts list →L1
R910917868SIDE MARKER RING1

Parameters from the type code

ItemMeaningCode
Axial piston unitSwashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi)A10V
Operating modePump, open circuitO
Size (NG)7171
Control deviceWith flow controller X-T plugged, with flushing functionDFR1
SeriesSeries 3, index 131
Direction of rotationViewed on drive shaft ClockwiseR
Sealing materialFKM (fluorocarbon rubber)V
Mounting flangeBased on ISO 3019-1 (SAE) 2-holeC
Working portSAE flange connections according to ISO 6162, working ports metric Fastening thread metric; lateral top bottom For through drive12
Through driveWithout through driveN00

Other versions 7
