Unit · AXIAL-PISTON PUMP
AA7VO500LRDH2/63R-PPH02R910973685
Axial piston pump Bosch Rexroth series A7VO, type code AA7VO500LRDH2/63R-PPH02, material number R910973685. Nominal size: NG 500.
- Number
- R910973685
- Type code
- AA7VO500LRDH2/63R-PPH02
- Group
- A7VO 500
- Edition
- 06/2020

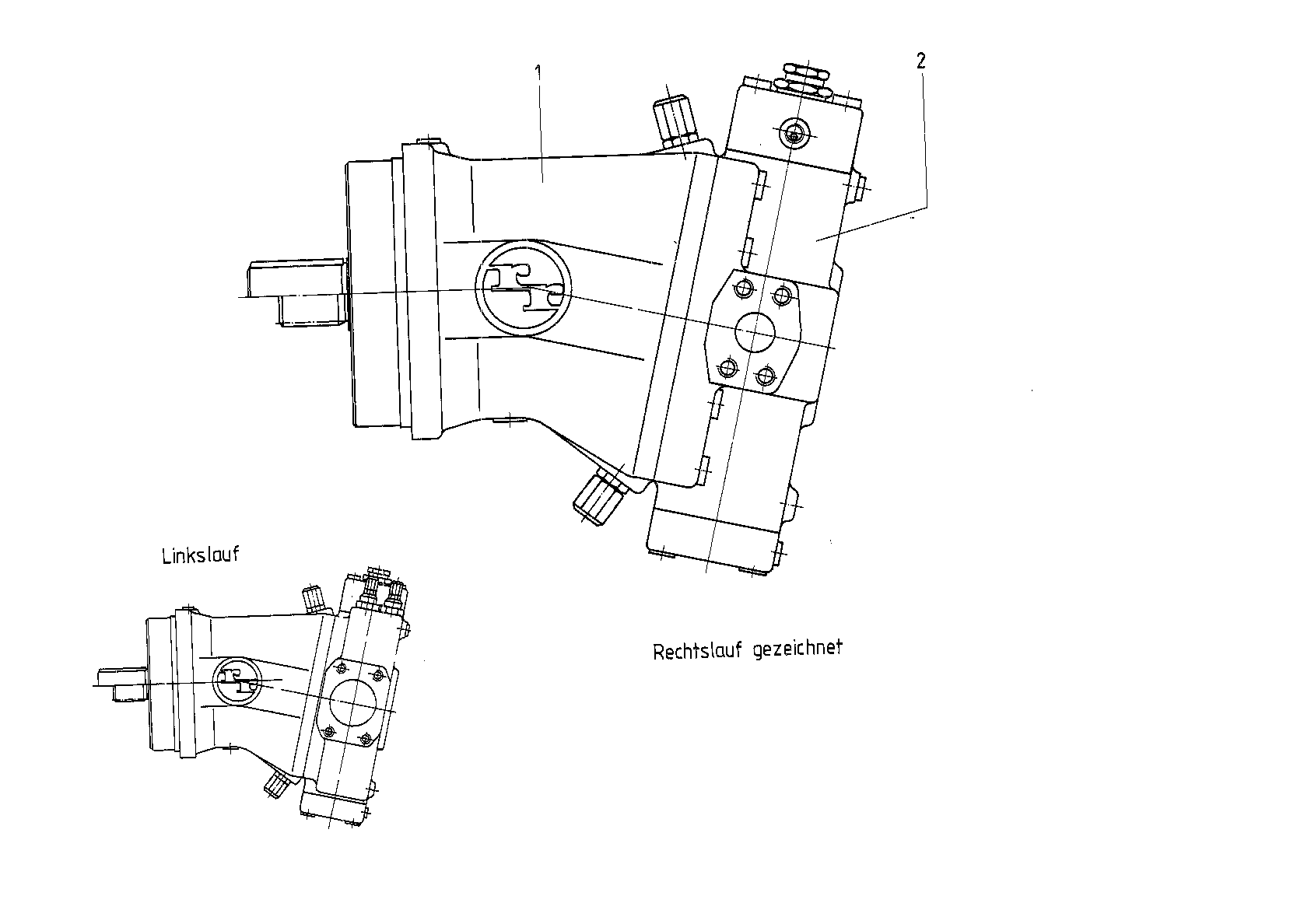

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R910947266 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | |
| 2 | R910973686 | CONTROL Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Bent axis design, variable, nominal pressure 350 bar, peak pressure 400 bar | A7V | |
| 500 | 500 | |
| with hydraulic stroke limiter initial position Vg max Δp = 25 bar | LRDH2 | |
| Series 6, Index 3 | 63 | |
| Keyed parallel shaft to DIN 6885 | P | |
| 8-hole | H | |
| SAE- flanged ports B or A, on opposite side (metric fixing bolts) SAE- flanged port S, on opposite side (metric fixing bolts) | 02 |
