Unit · AXIAL-PISTON PUMP

AA10VO71DFSR/31R-VSC62N00-SO595R910973931

Axial piston pump Bosch Rexroth series A10VO, type code AA10VO71DFSR/31R-VSC62N00-SO595, material number R910973931. Nominal size: NG 71. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft Clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections according to ISO 6162, working ports UNC Fastening thread UNC; lateral top bottom For through drive (62). Through drive: without through drive (N00). Special version no. 595.

Number: R910973931
Type code: AA10VO71DFSR/31R-VSC62N00-SO595
Group: A10VO 71
Edition: 03/2018

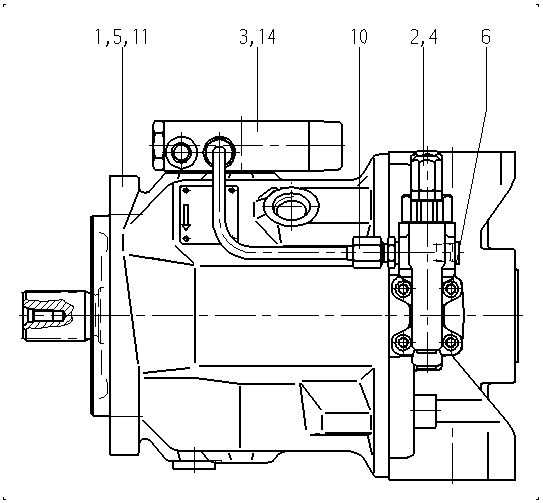

AA10VO71DFSR/31R-VSC62N00-SO595 — Drawing

Pos.	Number	Name	Qty
	R910973883	BASE UNIT Assembly parts list →L	1
	R902535535	CONTROL VALVE Assembly parts list →L	1
	R902533227	CONTROL VALVE Assembly parts list →L	1
	R902455818	CONTROL VALVE Assembly parts list →L	1
	R910917867	SIDE MARKER RING	1
	R910478474	SOCKET HEAD CAP SCREW	4
7	R902434482	SEAL	1
	R910963802	PIPING Assembly parts list →L	1
	R910973916	POWER DIAGRAM	1
	R910764647	SCREW PLUG	2
60	R909154493	SAFETY CAP	2

Parameters from the type code

Item	Meaning	Code
Axial piston unit	Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi)	A10V
Operating mode	Pump, open circuit	O
Size (NG)	71	71
Series	Series 3, index 1	31
Direction of rotation	Viewed on drive shaft Clockwise	R
Sealing material	FKM (fluorocarbon rubber)	V
Mounting flange	Based on ISO 3019-1 (SAE) 2-hole	C
Working port	SAE flange connections according to ISO 6162, working ports UNC Fastening thread UNC; lateral top bottom For through drive	62
Through drive	Without through drive	N00

Parameters from the type code

Other versions 2
