Unit · AXIAL-PISTON PUMP
AA10VO71DR/31L-VSC62K68-SO600R910974678
Axial piston pump Bosch Rexroth series A10VO, type code AA10VO71DR/31L-VSC62K68-SO600, material number R910974678. Nominal size: NG 71. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Control device: pressure controller Hydraulic (DR). Direction of rotation: viewed on drive shaft Counter-clockwise (L). Sealing material: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections according to ISO 6162, working ports UNC Fastening thread UNC; lateral top bottom For through drive (62). Through drive: 101-2 (B) 7/8 in 13T 16/32DP (K68). Special version no. 600.
- Number
- R910974678
- Type code
- AA10VO71DR/31L-VSC62K68-SO600
- Group
- A10VO 71
- Edition
- 06/2020

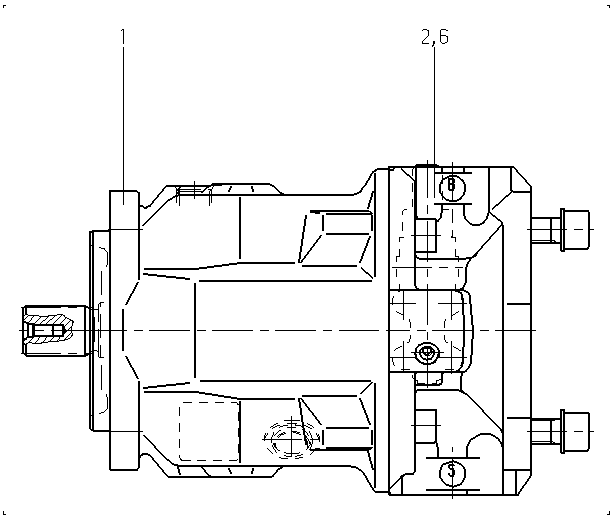

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902456679 | BASE UNIT Assembly parts list →L | 1 | ||
| R902459007 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910918064 | SIDE MARKER RING | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 71 | 71 |
| Control device | Pressure controller Hydraulic | DR |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft Counter-clockwise | L |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Working port | SAE flange connections according to ISO 6162, working ports UNC Fastening thread UNC; lateral top bottom For through drive | 62 |
| Through drive | 101-2 (B) 7/8 in 13T 16/32DP | K68 |
