Unit · AXIAL-PISTON PUMP
ALA10VO71DFSR/31R-VSC62K68-S1466R910975012
Axial piston pump Bosch Rexroth series A10VO, type code ALA10VO71DFSR/31R-VSC62K68-S1466, material number R910975012. Nominal size: NG 71. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft Clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections according to ISO 6162, working ports UNC Fastening thread UNC; lateral top bottom For through drive (62). Through drive: 101-2 (B) 7/8 in 13T 16/32DP (K68). Special version no. 1466.
- Number
- R910975012
- Type code
- ALA10VO71DFSR/31R-VSC62K68-S1466
- Group
- A10VO 71
- Edition
- 06/2020

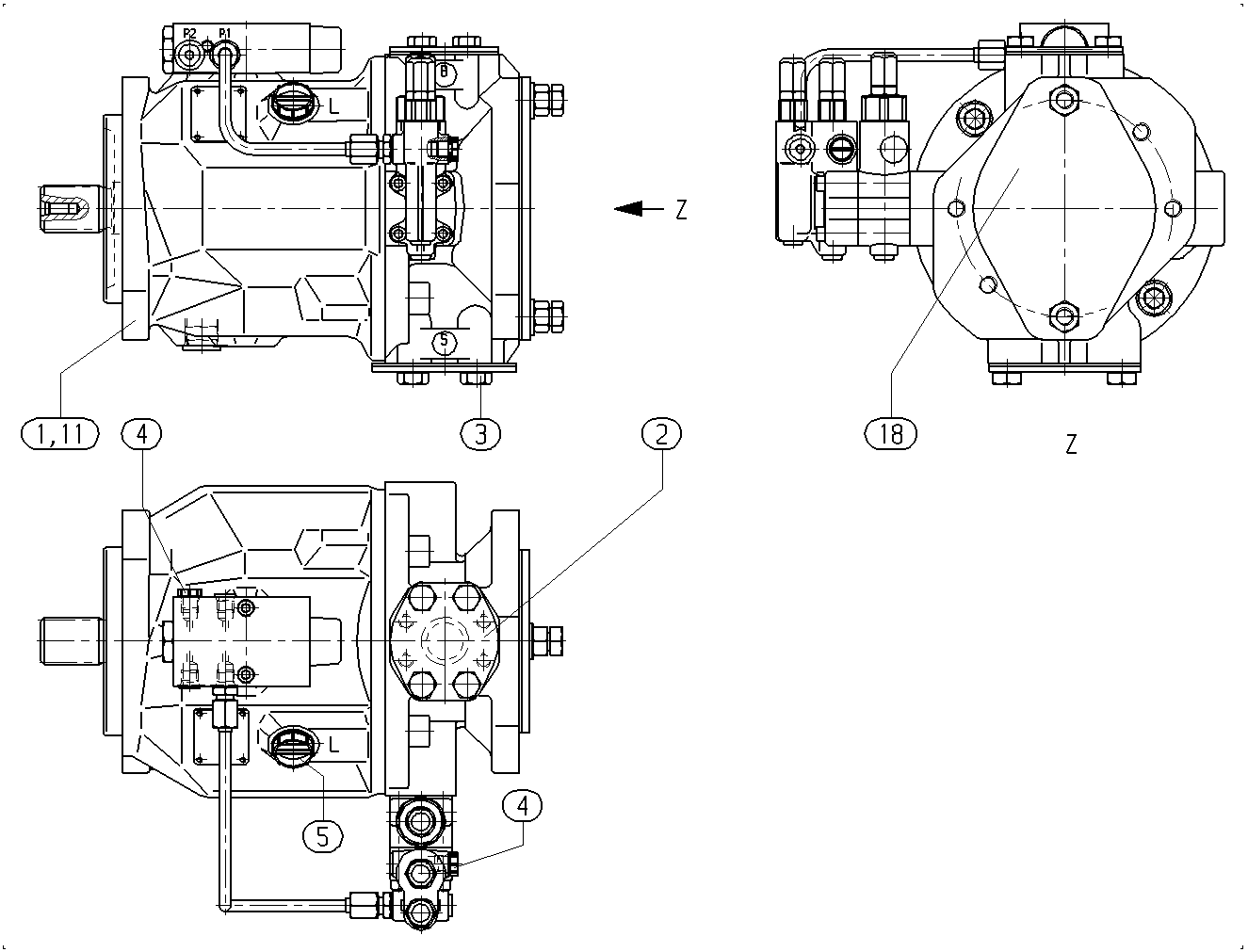

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902450675 | BASE UNIT Assembly parts list →L | 1 | ||
| R902534067 | FLANGE COVER | 1 | ||
| R902535535 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R902400591 | FLANGE COVER | 1 | ||
| R902533228 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R902602014 | SEAL SCREW | 2 | ||
| R902455818 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R902603190 | SEAL SCREW | 1 | ||
| 6 | R910478474 | SOCKET HEAD CAP SCREW | 4 | |
| 7 | R902434482 | SEAL | 1 | |
| 8 | R910764647 | SCREW PLUG | 2 | |
| 9 | R909154493 | SAFETY CAP | 2 | |
| 10 | R910963802 | PIPING Assembly parts list →L | 1 | |
| R902412921 | POWER DIAGRAM | 1 | ||
| R902602977 | FLANGE COVER | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 71 | 71 |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft Clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Working port | SAE flange connections according to ISO 6162, working ports UNC Fastening thread UNC; lateral top bottom For through drive | 62 |
| Through drive | 101-2 (B) 7/8 in 13T 16/32DP | K68 |
