Unit · AXIAL-PISTON MOTOR
AAA6VE250EZ2/63W2-VZM527B-SO102R910975539
Axial piston motor Bosch Rexroth series A6VE, type code AAA6VE250EZ2/63W2-VZM527B-SO102, material number R910975539. Axial piston unit: bent-axis design, variable displacement (A6V). Operating mode: plug-in motor (E). Control device 250: two-point control, electric (as standard, with HIRSCHMANN connector – without suppressor diode) U = 24 V (EZ2). Direction of rotation 250: viewed on drive shaft, bi-directional (W). Setting range for displacement 250: vg min > 0.4 Vg max to 0.8 Vg max Vg max = Vg max to 0.8 Vg max (2). Sealing material 250: FKM (fluoroelastomer) shaft seal (V). Drive shaft 250: splined shaft DIN 5480 (Z). Mounting flange 250: based on ISO 3019-2 4-hole (M). Special version no. 102.
- Number
- R910975539
- Type code
- AAA6VE250EZ2/63W2-VZM527B-SO102
- Group
- A6VE 250
- Edition
- 06/2020

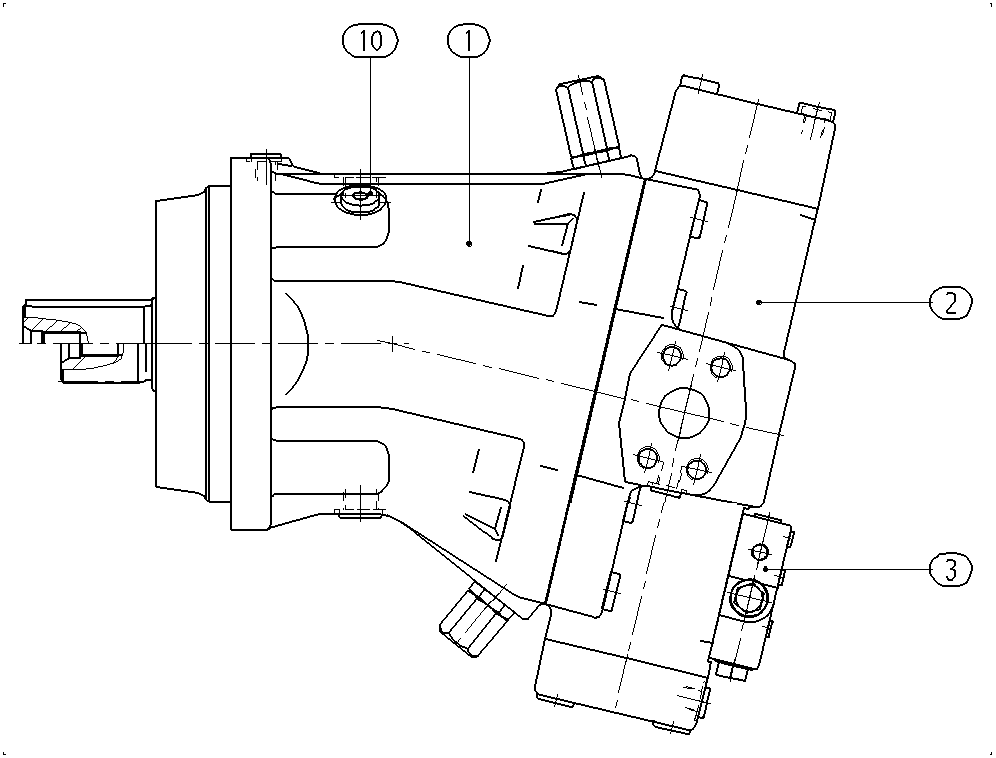

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910975532 | AXIAL-PISTON MOTOR Assembly parts list →L | 1 | ||
| R910975542 | CONTROL Assembly parts list →L | 1 | ||
| R910800755 | FLUSH/BOOST PRESSURE VALVE | 1 | ||
| R909156651 | SCREW PLUG | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable displacement | A6V |
| Operating mode | Plug-in motor | E |
| Control device 250 | Two-point control, electric (as standard, with HIRSCHMANN connector – without suppressor diode) U = 24 V | EZ2 |
| Series 250 | Series 6, index 3 | 63 |
| Direction of rotation 250 | Viewed on drive shaft, bi-directional | W |
| Setting range for displacement 250 | Vg min > 0.4 Vg max to 0.8 Vg max Vg max = Vg max to 0.8 Vg max | 2 |
| Sealing material 250 | FKM (fluoroelastomer) shaft seal | V |
| Drive shaft 250 | Splined shaft DIN 5480 | Z |
| Mounting flange 250 | Based on ISO 3019-2 4-hole | M |
| At Vg max (standard for HD, HZ, EP, EZ, DA) | B | |
| Special version | -S |
