Unit · REGULATOR
R A4VSO 71 DR /10R 'KXX' -SO103R910975885
Control Bosch Rexroth series A4VSO, type code RA4VSO71DR/10R'KXX'-SO103, material number R910975885. Nominal size: NG 71. Axial piston unit: swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar (A4VS). Operating mode: pump, open circuit (O). Control device Information on controller selection: pressure controller (DR). Directions of rotation: viewed on drive shaft Clockwise (R).
- Number
- R910975885
- Type code
- R A4VSO 71 DR /10R 'KXX' -SO103
- Group
- A4VSO 71
- Edition
- 07/2020

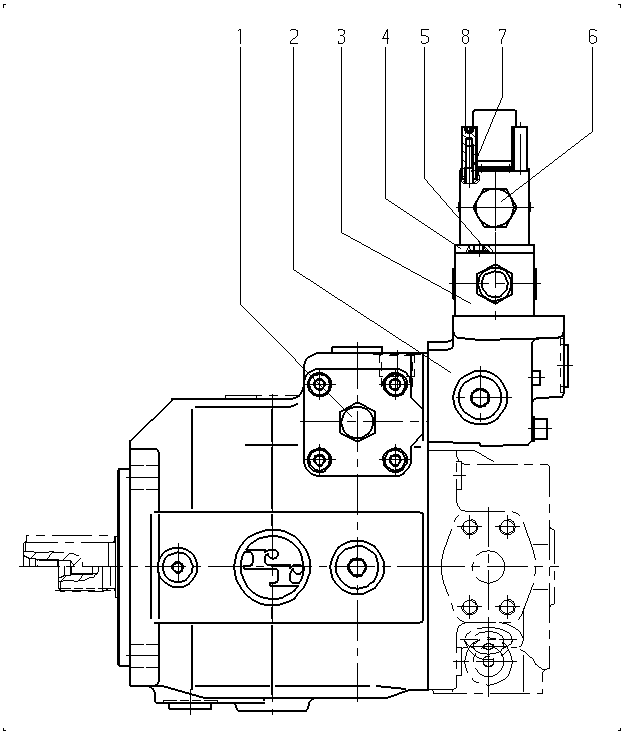

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910927285 | CONTROL Assembly parts list →L | 1 | ||
| R910972155 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R910990478 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910983924 | DIRECTIONAL-CONTROL VALVE Assembly parts list →L | 1 | ||
| R910975329 | CHOKE | 1 | ||
| R910799998 | SOCKET HEAD CAP SCREW | 4 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar | A4VS |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 71 | 71 |
| Control device Information on controller selection | Pressure controller | DR |
| Series | Series 1, index 0 | 10 |
| Directions of rotation | Viewed on drive shaft Clockwise | R |
